pressure piece
Series ADS

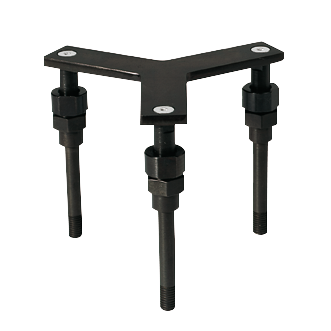

  • ADS pressure piece
    You hit the limit stop of the pressure piece when picking up the workpiece. When depositing the workpiece or opening the gripper, the workpiece is fed into a clamping chuck or similar intake via the pretensioned spring.
Order-No.Compatible with installation sizeSuitable for gripper versionTotal spring force min.
ADS5003-01GPD5003N / S11 [N]
ADS5003-02GPD5003NC / NO / SC / SO11 [N]
ADS5004-01GPD5004N / S16.5 [N]
ADS5004-02GPD5004C / O16.5 [N]
ADS5006-01GPD5006N / S35.0 [N]
ADS5006-02GPD5006C / O35.0 [N]
ADS5006-05GED5006GED35.0 [N]
ADS5008-01GPD5008N / S62.0 [N]
ADS5008-02GPD5008C / O62.0 [N]
ADS5008-05GED5008GED62.0 [N]
ADS5010-01GPD5010N / S62.0 [N]
ADS5010-02GPD5010C / O62.0 [N]
ADS5010-05GED5010GED62.0 [N]
ADS5013-01GPD5013N / S50.0 [N]
ADS5013-02GPD5013C / O50.0 [N]
ADS5016-01GPD5016N / S73.0 [N]
ADS5016-02GPD5016C / O73.0 [N]
ADS5025-01GPD5025N / S85.0 [N]
ADS5025-02GPD5025C / O85.0 [N]
ADS5030-01GPD5030N / S121.0 [N]
ADS5030-02GPD5030C / O121.0 [N]
