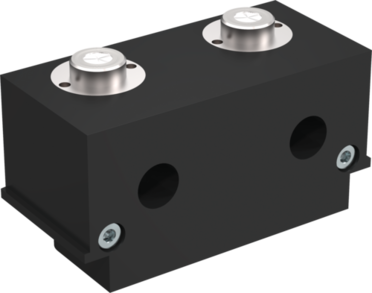

WER106FH2DNW5
Series
- Fluid and electrical energy transfer
- Standardised and packaged
- Short set up time for maintenance work
- Custom-specifically modifiable
Technical Data
| compatible with | Fix part |
| Transmission mode | fluidic |
| Fixing thread | G1/4" |
| Number of fluid couplings | 2 |
| Nominal diameter | 5 |
| Flow per connector max. | 12 [l/min] |
| Operating pressure max. | 350 [bar] |
| Operating pressure max. | 15 [bar] |
| Weight | 0.35 [kg] |
