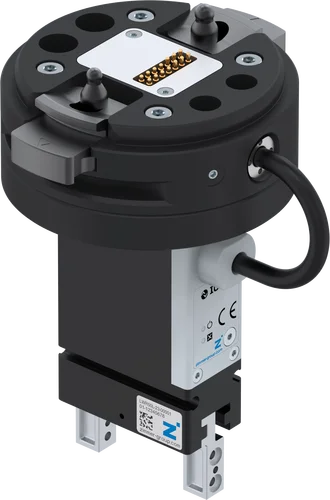

2-Jaw Parallel Grippers
Series LWR
- Largest stroke in small installation space
- The simplest activation
- Positionability via IO-Link
- Use in combination with Match - Robot modules (Digital I/O/IO-Link/RS485)
- Optimal for applications such as medical technology/laboratory automation, assembly, electronics industry, etc.
| Order-No. | Stroke per jaw | Control | Operating temperature | |
|---|---|---|---|---|
| LWR50L-23-00001-A | 6 [mm] | IO-Link | 5 ... +60 [°C] | |
| LWR50L-23-00002-A | 10 [mm] | IO-Link | 5 ... +60 [°C] | |
| LWR50L-23-00003-A | 13 [mm] | IO-Link | 5 ... +60 [°C] | |
| LWR50L-23-00004-A | 16 [mm] | IO-Link | 5 ... +60 [°C] | |
| LWR50L-23-00005-A | 6 [mm] | I/O | 5 ... +60 [°C] | |
| LWR50L-23-00006-A | 10 [mm] | I/O | 5 ... +60 [°C] | |
| LWR50L-23-00007-A | 13 [mm] | I/O | 5 ... +60 [°C] | |
| LWR50L-23-00008-A | 16 [mm] | I/O | 5 ... +60 [°C] |
