Magic Grippers
Modular vacuum system
Boost your productivity with the Magic Gripper, an innovative, modular vacuum system designed for demanding automation and handling processes. Thanks to decentralized vacuum generation using a bellows and suction lip, the Magic Gripper offers maximum flexibility and performance with minimal energy consumption. Magic Cup technology can also be used in a wide range of applications.
Ask us now for your individual configuration!
OUR EXPERTISE – YOUR ADVANTAGE
- Application-specific and versatile
- Fast response times and high performance
- Consistent performance even with fluctuating supply air pressure
- Various model options available depending on flow rate
- Low energy consumption – 70% more energy savings
- Saves time and money when setting up a vacuum system
- Thanks to the modular design, only the suction lip needs to be replaced when worn
Fastener
Several mounting options are available, including a pre-installed internal thread, an external thread and a connection to the specially designed profile system with an integrated compressed air line.

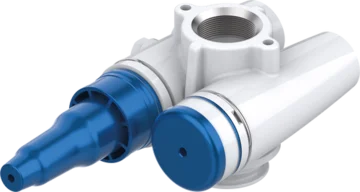

Vacuum generator
Four different installation sizes and housing types offer you maximum flexibility that is always tailored to your field of application and your specific needs.

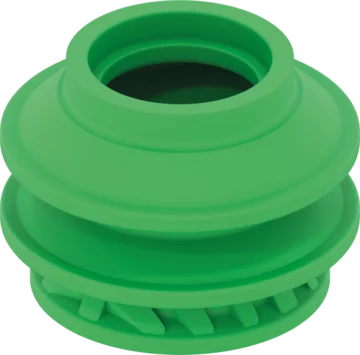

Bellows
The bellows connects the vacuum generator to the suction lip and ensures even height compensation. This allows the Magic Gripper to adapt flexibly to different surfaces and ensures a secure, consistent suction.

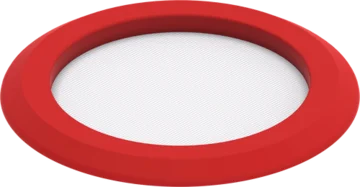

Vacuum filter
The vacuum filter prevents contaminants from entering the vacuum generator during the suction process. This extends the service life of the vacuum generator and significantly reduces maintenance requirements.

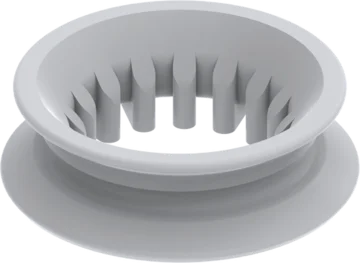

Connection element
The connection element is inserted between the suction lip and the bellow.

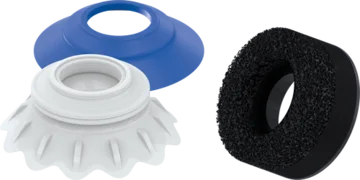

Suction lip
Different suction lips are available depending on the application. Each model is available in a wide range of materials and diameters.

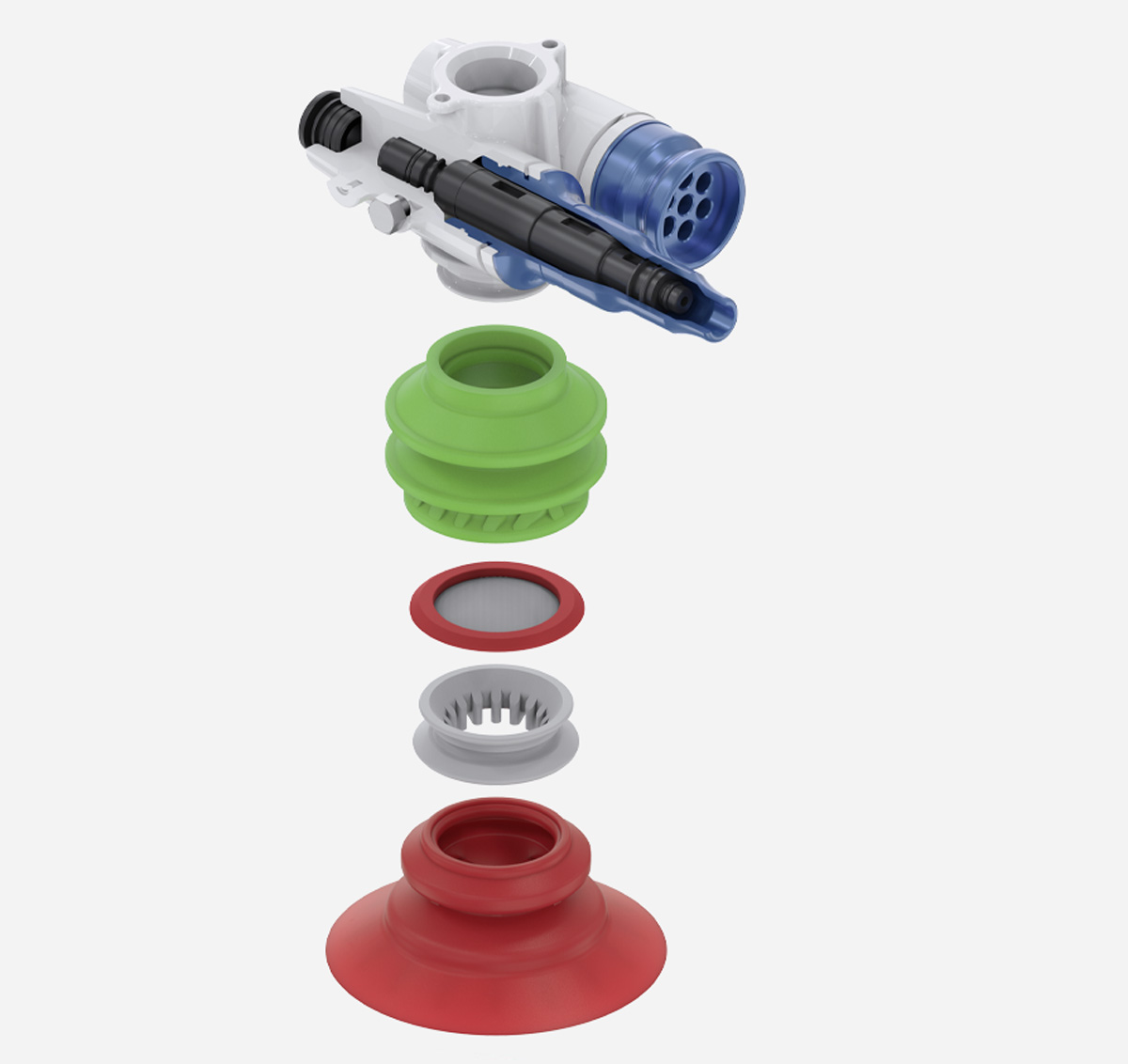

1. Fastener
Several mounting options are available, including a pre-installed internal thread, an external thread and a connection to the specially designed profile system with an integrated compressed air line.
2. Vacuum generator
Four different installation sizes and housing types offer you maximum flexibility that is always tailored to your field of application and your specific needs.
3. Bellows
The bellows connects the vacuum generator to the suction lip and ensures even height compensation. This allows the Magic Gripper to adapt flexibly to different surfaces and ensures a secure, consistent suction.
4. Vacuum filter
The vacuum filter prevents contaminants from entering the vacuum generator during the suction process. This extends the service life of the vacuum generator and significantly reduces maintenance requirements.
5. Connection element
The connection element is inserted between the suction lip and the bellow.
6. Suction lip
Different suction lips are available depending on the application. Each model is available in a wide range of materials and diameters.
