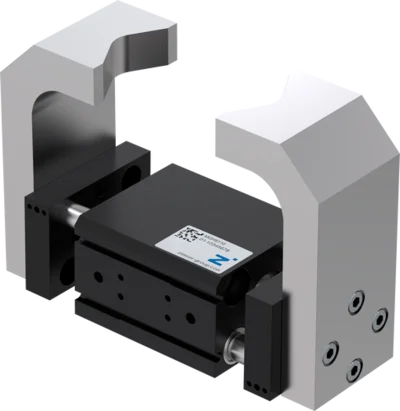

2-Jaw Parallel Grippers with Long Stroke
Series MGH8000

"The compact"

Series features
  • 10 million maintenance-free cycles (max.)
  • IP54
  • Magnetic field sensor
  • Inductive sensor

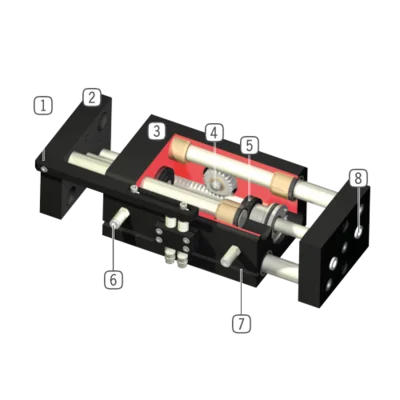

  1. Attachment kit (cam switch and clamping block)
    for sensing position by means of proximity switch (optional feature)
  2. Gripper jaw
    individual gripper finger mounting
  3. Robust, lightweight housing
    Hard-coated aluminum alloy
  4. Synchronization
    via rack and pinion
  5. Drive
    two double-acting pneumatic cylinders
  6. Energy supply
    possible from several sides
  7. Integrated groove
    mounting and positioning of magnetic field sensors
  8. Removable centering sleeves
    quick and economical positioning of the gripper fingers
