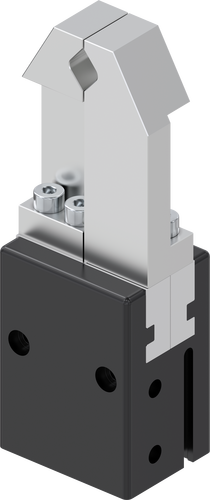

2-Jaw Parallel Grippers
Series MGP800

"The powerful"

Over 40% more powerful than the benchmark
Optimisation of weight and force reduces your application costs since all components can have a smaller scale
Gripper jaws up to 50% longer than the benchmark
The highest force and torque measurement enables flexible use for maximum dynamics
Failure-free continuous operation
Our uncompromising "Made in Germany" quality guarantees up to 10 million maintenance-free cycles

Series features

Robust, lightweight housing
Hard-coated aluminum alloy
Gripper jaw
individual gripper finger mounting
Position sensing
permanent magnet for direct monitoring of piston movement
Integrated gripping force safety device
spring integrated into cylinder as energy storage (from size 803 upwards)
Removable centering sleeves
quick and economical positioning of the gripper fingers
Mounting and positioning
mounting possible from several sides for versatile positioning
Energy supply
possible from several sides
Sensing slot
mounting and positioning of magnetic field sensors

Fixed gripper jaw Individualizations	Fixed gripper jaw Individualizations	Use Can be used universally e.g. as a hold-down device Advantage Fixed end stop Defined workpiece position Minimized interference contours	Details
H1 greasing, food-safe Individualizations	H1 greasing, food-safe Individualizations	Use Pharmaceutical, medical, cosmetic and food industries Packaging and production machines Advantage FDA-approved materials and coatings No harmful contamination of the product	Details
Explosion protection according to Atex Individualizations	Explosion protection according to Atex Individualizations	Use In environments with highly flammable materials Advantage Safe process guaranteed Certified All products and classes can be certified	Details
Plunger-operated grippers Drive adaptation	Plunger-operated grippers Drive adaptation	Use Rotary indexing tables Workpiece carrier Advantage No direct power supply Gripping force is generated via a spring Normally open or normally closed Drive by means of stationary, cost-effective standard cylinder or cam disk	Details
