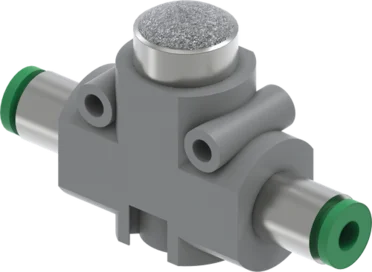

DEV04

Quick Exhaust Valve
Series DEV

For higher piston speeds for cylinders
To bring about quick-action ventilation, the valve must be installed as close to the cylinder's air connection as possible

Outside-Ø for hose	4 [mm]
Operating pressure max.	10 [bar]
Nominal operating pressure	6 [bar]
Operating temperature	-5 ... +50 [°C]
Flow in the case of aeration	250 [Nl/min]
Flow in the case of ventilation	500 [Nl/min]
Approvals	LABS / REACH / RoHS
Weight	0.015 [kg]
