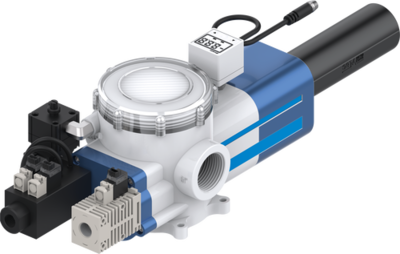

Vacuum ejector
Series ZTP
- High-performance
- Volume flow: 341 l/min–1,448 l/min
- Air consumption: 208 l/min–416 l/min
- Max. vacuum level: -92 kPa
- All-in-one solution
The vacuum generator is multifunctional and suitable for various applications. It has an integrated filter with self-cleaning function and an optional air-saving function.
Vacuum level max.
Volume flow [l/min]
Weight [kg]
Installation size: ZTP3031 | ||||
| Order-No. | Max. vacuum level | Volume flow | Air consumption at 4 bar | |
|---|---|---|---|---|
| ZTP3031 | -92 [kPa] | 341 [l/min] | 152 [l/min] | |
| ZTP3031-AR3-DL-SN | -92 [kPa] | 341 [l/min] | 152 [l/min] | |
| ZTP3031-AR3-DL-SP | -92 [kPa] | 341 [l/min] | 152 [l/min] | |
| ZTPE3031-AR3-DL-SN | -92 [kPa] | 341 [l/min] | 152 [l/min] | |
| ZTPE3031-AR3-DL-SP | -92 [kPa] | 341 [l/min] | 152 [l/min] | |
| ZTPED3031-10-N | -92 [kPa] | 341 [l/min] | ||
| ZTPED3031-10-N-Q | -92 [kPa] | 341 [l/min] | ||
| ZTPED3031-10-P | -92 [kPa] | 341 [l/min] | ||
| ZTPED3031-10-P-Q | -92 [kPa] | 341 [l/min] | ||
| ZTPED3031-14-N | -92 [kPa] | 341 [l/min] | ||
| ZTPED3031-14-N-Q | -92 [kPa] | 341 [l/min] | ||
| ZTPED3031-14-P | -92 [kPa] | 341 [l/min] | ||
| ZTPED3031-14-P-Q | -92 [kPa] | 341 [l/min] | ||
Installation size: ZTP3032 | ||||
| Order-No. | Max. vacuum level | Volume flow | Air consumption at 4 bar | |
| ZTP3032 | -92 [kPa] | 682 [l/min] | 304 [l/min] | |
| ZTP3032-AR3-DL-SN | -92 [kPa] | 682 [l/min] | 304 [l/min] | |
| ZTP3032-AR3-DL-SP | -92 [kPa] | 682 [l/min] | 304 [l/min] | |
| ZTPE3032-AR3-DL-SN | -92 [kPa] | 682 [l/min] | 304 [l/min] | |
| ZTPE3032-AR3-DL-SP | -92 [kPa] | 682 [l/min] | 304 [l/min] | |
| ZTPED3032-10-N | -92 [kPa] | 682 [l/min] | ||
| ZTPED3032-10-N-Q | -92 [kPa] | 682 [l/min] | ||
| ZTPED3032-10-P | -92 [kPa] | 682 [l/min] | ||
| ZTPED3032-10-P-Q | -92 [kPa] | 682 [l/min] | ||
| ZTPED3032-14-N | -92 [kPa] | 682 [l/min] | ||
| ZTPED3032-14-N-Q | -92 [kPa] | 682 [l/min] | ||
| ZTPED3032-14-P | -92 [kPa] | 682 [l/min] | ||
| ZTPED3032-14-P-Q | -92 [kPa] | 682 [l/min] | ||
| ZTPL3032 | -75 [kPa] | 724 [l/min] | 140 [l/min] | |
| ZTPL3032-AR3-DL-SN | -75 [kPa] | 724 [l/min] | 140 [l/min] | |
| ZTPL3032-AR3-DL-SP | -75 [kPa] | 724 [l/min] | 140 [l/min] | |
| ZTPLE3032-AR3-DL-SN | -75 [kPa] | 724 [l/min] | 140 [l/min] | |
| ZTPLE3032-AR3-DL-SP | -75 [kPa] | 724 [l/min] | 140 [l/min] | |
| ZTPLED3032-10-N | -75 [kPa] | 724 [l/min] | ||
| ZTPLED3032-10-N-Q | -75 [kPa] | 724 [l/min] | ||
| ZTPLED3032-10-P | -75 [kPa] | 724 [l/min] | ||
| ZTPLED3032-10-P-Q | -75 [kPa] | 724 [l/min] | ||
| ZTPLED3032-14-N | -75 [kPa] | 724 [l/min] | ||
| ZTPLED3032-14-N-Q | -75 [kPa] | 724 [l/min] | ||
| ZTPLED3032-14-P | -75 [kPa] | 724 [l/min] | ||
| ZTPLED3032-14-P-Q | -75 [kPa] | 724 [l/min] | ||
Installation size: ZTP3033 | ||||
| Order-No. | Max. vacuum level | Volume flow | Air consumption at 4 bar | |
| ZTP3033 | -92 [kPa] | 1023 [l/min] | 456 [l/min] | |
| ZTP3033-AR3-DL-SN | -92 [kPa] | 1023 [l/min] | 456 [l/min] | |
| ZTP3033-AR3-DL-SP | -92 [kPa] | 1023 [l/min] | 456 [l/min] | |
| ZTPE3033-AR3-DL-SN | -92 [kPa] | 1023 [l/min] | 456 [l/min] | |
| ZTPE3033-AR3-DL-SP | -92 [kPa] | 1023 [l/min] | 456 [l/min] | |
| ZTPED3033-10-N | -92 [kPa] | 1023 [l/min] | ||
| ZTPED3033-10-N-Q | -92 [kPa] | 1023 [l/min] | ||
| ZTPED3033-10-P | -92 [kPa] | 1023 [l/min] | ||
| ZTPED3033-10-P-Q | -92 [kPa] | 1023 [l/min] | ||
| ZTPED3033-14-N | -92 [kPa] | 1023 [l/min] | ||
| ZTPED3033-14-N-Q | -92 [kPa] | 1023 [l/min] | ||
| ZTPED3033-14-P | -92 [kPa] | 1023 [l/min] | ||
| ZTPED3033-14-P-Q | -92 [kPa] | 1023 [l/min] | ||
Installation size: ZTP3034 | ||||
| Order-No. | Max. vacuum level | Volume flow | Air consumption at 4 bar | |
| ZTP3034 | -92 [kPa] | 1364 [l/min] | 608 [l/min] | |
| ZTP3034-AR3-DL-SN | -92 [kPa] | 1364 [l/min] | 608 [l/min] | |
| ZTP3034-AR3-DL-SP | -92 [kPa] | 1364 [l/min] | 608 [l/min] | |
| ZTPE3034-AR3-DL-SN | -92 [kPa] | 1364 [l/min] | 608 [l/min] | |
| ZTPE3034-AR3-DL-SP | -92 [kPa] | 1364 [l/min] | 608 [l/min] | |
| ZTPED3034-10-N | -92 [kPa] | 1364 [l/min] | ||
| ZTPED3034-10-N-Q | -92 [kPa] | 1364 [l/min] | ||
| ZTPED3034-10-P | -92 [kPa] | 1364 [l/min] | ||
| ZTPED3034-10-P-Q | -92 [kPa] | 1364 [l/min] | ||
| ZTPED3034-14-N | -92 [kPa] | 1364 [l/min] | ||
| ZTPED3034-14-N-Q | -92 [kPa] | 1364 [l/min] | ||
| ZTPED3034-14-P | -92 [kPa] | 1364 [l/min] | ||
| ZTPED3034-14-P-Q | -92 [kPa] | 1364 [l/min] | ||
| ZTPL3034 | -75 [kPa] | 1448 [l/min] | 280 [l/min] | |
| ZTPL3034-AR3-DL-SN | -75 [kPa] | 1448 [l/min] | 280 [l/min] | |
| ZTPL3034-AR3-DL-SP | -75 [kPa] | 1448 [l/min] | 280 [l/min] | |
| ZTPLE3034-AR3-DL-SN | -75 [kPa] | 1448 [l/min] | 280 [l/min] | |
| ZTPLE3034-AR3-DL-SP | -75 [kPa] | 1448 [l/min] | 280 [l/min] | |
| ZTPLED3034-10-N | -75 [kPa] | 1448 [l/min] | ||
| ZTPLED3034-10-N-Q | -75 [kPa] | 1448 [l/min] | ||
| ZTPLED3034-10-P | -75 [kPa] | 1448 [l/min] | ||
| ZTPLED3034-10-P-Q | -75 [kPa] | 1448 [l/min] | ||
| ZTPLED3034-14-N | -75 [kPa] | 1448 [l/min] | ||
| ZTPLED3034-14-N-Q | -75 [kPa] | 1448 [l/min] | ||
| ZTPLED3034-14-P | -75 [kPa] | 1448 [l/min] | ||
| ZTPLED3034-14-P-Q | -75 [kPa] | 1448 [l/min] | ||
