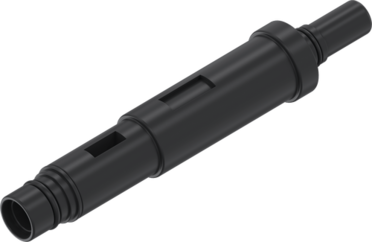

ZVCL302
Vacuum cartridge
Series ZVC
- High Efficiency
High vacuum flow with low compressed air consumption for efficient operation. - Lightweight and compact
An exceptionally compact and lightweight design for space-saving integration. - Reliable Even When Air Pressure Fluctuates
Consistent vacuum generation even when compressed air pressure fluctuates or drops. - Certifications: LABS / REACH / RoHS
Technical Data
| Max. vacuum level | -75 [kPa] |
| Volume flow | 200 [l/min] |
| Throttle check valve | No |
| Weight | 0.013 [kg] |
| Digital vacuum switch | No |
| Air-saving function | No |
| Vacuum cartridge type | Midi L-type |
| Number of stages of the vacuum cartridge | 2 |
| Air control valve | No |
| Blow-off control valve | No |
| Solenoid valve | No |
| Silencer | No |
| Vacuum filter | No |
| Operating pressure max. | 7 [bar] |
| Air consumption at 4 bar | 70 [l/min] |
| Air consumption at 6 bar | 104 [l/min] |
| Operating temperature | -20 ... +80 [°C] |
| Certifications | LABS / REACH / RoHS |
