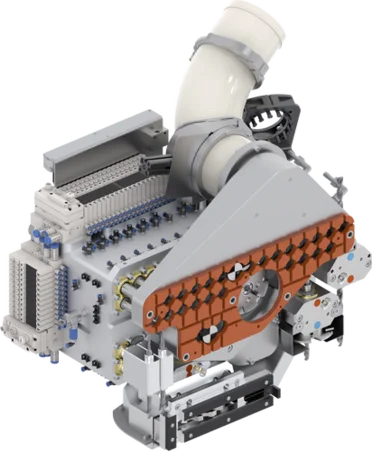

MFU176580

Multi-function unit
- Adaptable motor spindle
- Machining of wood, composite materials and plastics
- Drilling units of all types
- Drilling units for individual and series drilling processing
- Gripper and handling units for workpiece handling
- Modular multi-function head for implementing wide-ranging functions on the machining module
- Project-specific design of the multi-function head for minimum space requirement and tool exchange effort
- Setting module for base feet
- Variable number of spindles and arrangement; can be adjusted individually
Technical Data
Spindle arrangement | U-shape |
Number of spindles | 21 |
Spacing | 32 [mm] |
Direction of rotation drive | right |
Fitting unit | Yes |
Handling unit | No |
Cooling | Water |
Maximum speed | 7500 |
Motor connection | Integrated |
Weight | 110 [kg] |
Maintenance interval | 500 [h] |
