MILES3510-215205-A

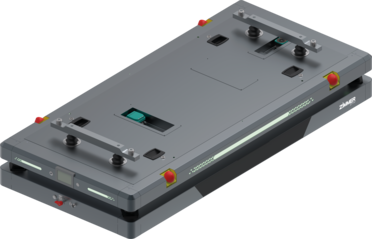

Autonomous mobile robot
Series Miles

  • A coordinated complete system that combines hardware, software and servicing
    The Zimmer Group AMR comes with all-round service. From simulation and goods flow analysis for navigation, to fully automated fleet management, including connection to your ERP system. We set up the system on your premises and provide your operating personnel with full training. To guarantee your logistics flows, our service team is always on hand afterward.
  • Customized concepts and designs
    Meeting the different requirements in intralogistics calls for more flexible automation solutions. We will support you with modular AMR design options and respond to the individual needs of your company.
  • Long battery life and intelligent battery management
    To ensure uninterrupted operation, our AMRs are equipped with the latest battery technology to guarantee a driving time of 8 hours. At the same time, the charging time is less than two hours from 0 to 100%.
Equipment/Options
  • Integration into the ERP system
  • VDA 5050 compliant and Natural Navigation
  • Inductive charging
  • Safety based on Sick technology
  • IP54
  • 2 h charging time
  • 80 mm stroke
  • User-friendly user interface
  • Up to 1.5 m/s travel speed
  • Comprehensive service
  • Commissioning
  • Complete integration into the entire production process
  • Long-life battery with 48 V on-board voltage
  • Planning the hall and the AMR fleet using simulation
Chassis typeDifferential drive
Max. speed1.5 [m/s]
Basic vehicle load capacity3500 [kg]
NavigationAbout laser
Runtime8 [h]
Stroke80 [mm]
Charging processvia induction
Navigation softwareNavitec Navitrol
Charging time from 0 to 100%2 [h]
Length of basic vehicle2375 [mm]
Base vehicle width1100 [mm]
Base vehicle height350 [mm]
Communication interfaceVDA 5050
Manual charging station
Details
Inductive charging station
Details
Storage stations
Details
