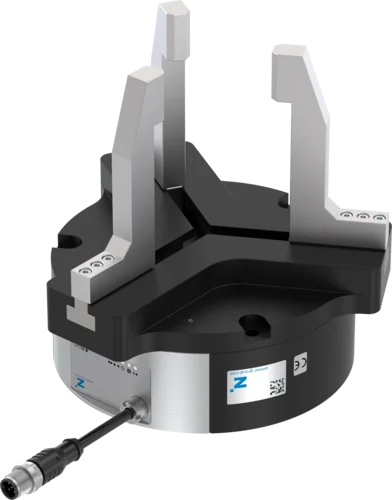

3-Jaw Concentric Grippers with Long Stroke
Series GED6000IL
"Highest performance"
- 5 million maintenance-free cycles
- Integrated sensing via IO-Link
- Servo drive with integrated controller
Brushless drive technology, position, speed and force control guarantee the highest amount of functionality - IO-Link on board
In addition to the unshielded single-cable solution, the future-proof, hot-pluggable activation provides you with a wide variety of travel profiles for easy implementation into your control system - Gentle yet powerful
Power version -03 for handling heavy workpieces with mechanical self-locking and version -31 for gently gripping of delicate parts
Series features
5 million maintenance-free cycles (max.)
Integrated sensing
IP54
Self locking mechanism
Positionable
Gripping force adjustable
High movement speed
Gentle
Powerful
IO-Link
Clean room certified
Installation Size: GED6040IL
| Order-No. | Control | Type of drive | Stroke per jaw, adjustable | |
|---|---|---|---|---|
| GED6040IL-03-A | IO-Link | electrical | 40 [mm] | |
| GED6040IL-31-A | IO-Link | electrical | 40 [mm] |
Installation Size: GED6140IL
| Order-No. | Control | Type of drive | Stroke per jaw, adjustable | |
|---|---|---|---|---|
| GED6140IL-03-A | IO-Link | electrical | 40 [mm] |
