Tool Changers
Series HWR2000
- Change in seconds
Reduce your start up costs and minimise downtimes by changing your tool in seconds - Integrated air transfer system

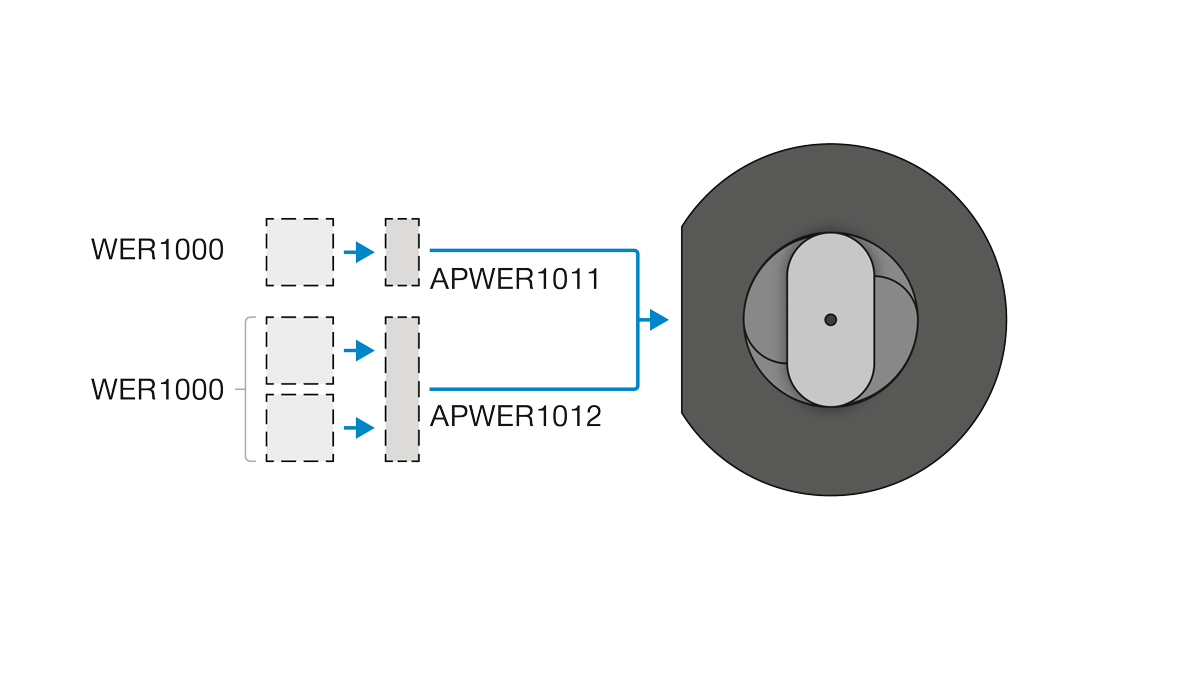

For supplying pneumatic actuators. Additional media can be transmitted using optional energy elements. - Includes loss protection
Undesired falling of work pieces is eliminated - this means the highest safety for man and machine
Installation Size: HWR2031 | ||||
| Order-No. | Connecting flange according EN ISO 9409-1 | Pneumatic energy transfer | Flow per connector | |
|---|---|---|---|---|
| HWR2031F | TK 31.5 | 4 [Quantity] | 150 [l/min] | |
| HWR2031L | TK 31.5 | 4 [Quantity] | 150 [l/min] | |
Installation Size: HWR2040 | ||||
| Order-No. | Connecting flange according EN ISO 9409-1 | Pneumatic energy transfer | Flow per connector | |
| HWR2040F | TK 40 | 4 [Quantity] | 150 [l/min] | |
| HWR2040L | TK 40 | 4 [Quantity] | 150 [l/min] | |
Installation Size: HWR2050 | ||||
| Order-No. | Connecting flange according EN ISO 9409-1 | Pneumatic energy transfer | Flow per connector | |
| HWR2050F | TK 50 | 8 [Quantity] | 150 [l/min] | |
| HWR2050L | TK 50 | 8 [Quantity] | 150 [l/min] | |
- Fix part
For robot side assembly - Robot flange
partial mounting circle in accordance with EN ISO 9409-1 - Eccentric locking bolt
with spring supported snap in function - Locking bolt
adapted to the clamping sleeve - Mounting for energy element
- Integrated air feed-through
Air / vaccum transfer hoseless control possible - Loose part
for tool side assembly
