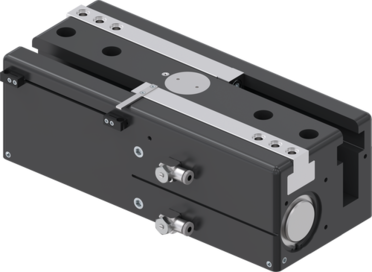

GH64150-B
Equipment/Options
10 million maintenance-free cycles (max.)
IP40
Magnetic field sensor
Inductive sensor
Technical Data
| Stroke per jaw | 150 [mm] |
| Gripping force in closing | 3300 [N] |
| Gripping force in opening | 2780 [N] |
| Closing time | 1 [s] |
| Opening time | 1 [s] |
| Dead weight of mounted gripper finger max. | 6 [kg] |
| Length of the gripper fingers max. | 400 [mm] |
| Repetition accuracy +/- | 0.05 [mm] |
| Operating pressure min. | 3 [bar] |
| Operating pressure max. | 8 [bar] |
| Nominal operating pressure | 6 [bar] |
| Operating temperature min. | +5 [°C] |
| Operating temperature max. | +80 [°C] |
| Air volume per cycle | 1775 [cm³] |
| Protection to IEC 60529 | IP40 |
| Weight | 18 [kg] |
Accessory
Benefits in detail
- Mounting block
mounting for inductive proximity switch - Mounting and positioning
mounting possible from several sides for versatile positioning - Removable centering sleeves
quick and economical positioning of the gripper fingers - Gripper jaw
individual gripper finger mounting - Precise long T-Slot guides
high forces and moments capacity - Drive
two double-acting pneumatic cylinders synchronized by gearwheel - Energy supply
possible from several sides CAUTION: always operate long stroke gripper with supplied exhaust air flow control valve (speed regulation) - Robust, lightweight housing
Hard-coated aluminum alloy
