Tool Changers
Series HWR2000

  • Change in seconds
    Reduce your start up costs and minimise downtimes by changing your tool in seconds
  • Integrated air transfer system
    For supplying pneumatic actuators. Additional media can be transmitted using optional energy elements.
  • Includes loss protection
    Undesired falling of work pieces is eliminated - this means the highest safety for man and machine
Installation Size: HWR2031
Order-No.Connecting flange according EN ISO 9409-1Recommended handling weightPneumatic energy transfer
HWR2031FTK 31.55 [kg]4 [Quantity]
HWR2031LTK 31.55 [kg]4 [Quantity]
Installation Size: HWR2040
Order-No.Connecting flange according EN ISO 9409-1Recommended handling weightPneumatic energy transfer
HWR2040FTK 4010 [kg]4 [Quantity]
HWR2040LTK 4010 [kg]4 [Quantity]
Installation Size: HWR2050
Order-No.Connecting flange according EN ISO 9409-1Recommended handling weightPneumatic energy transfer
HWR2050FTK 5020 [kg]8 [Quantity]
HWR2050LTK 5020 [kg]8 [Quantity]
  1. Fix part
    for robot side assembly
  2. Robot flange
    partial mounting circle in accordance with EN ISO 9409-1
  3. Eccentric locking bolt
    with spring supported snap in function
  4. Locking bolt
    adapted to the clamping sleeve

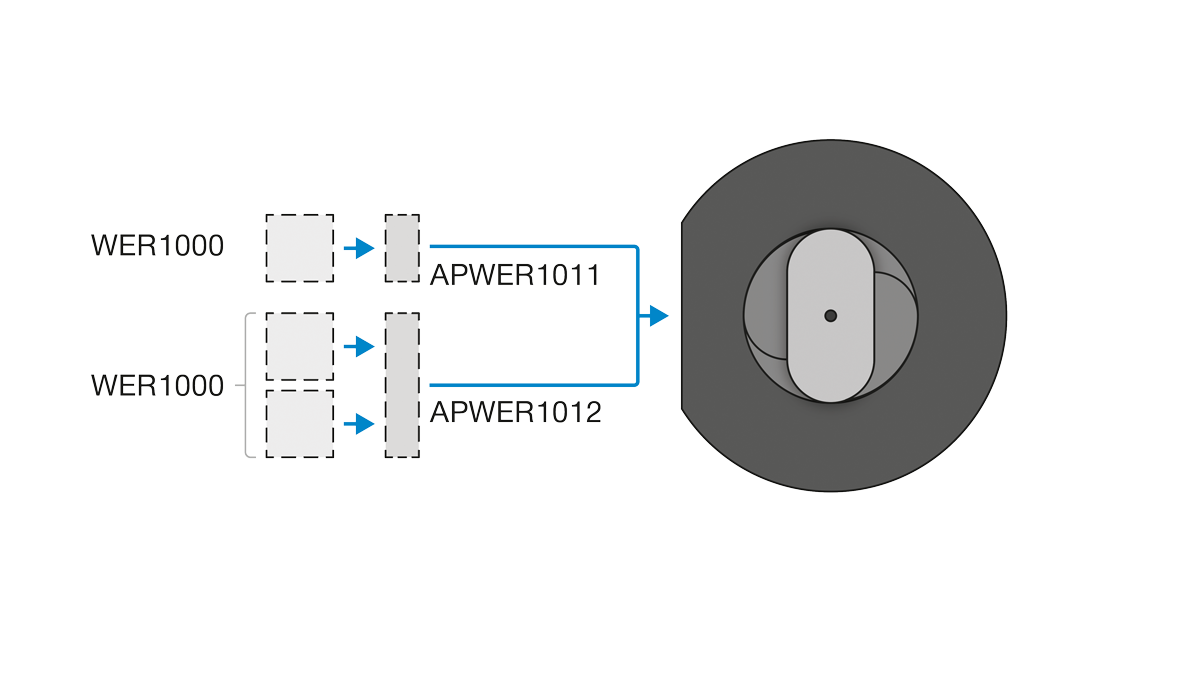

  5. Mounting for energy element
  6. Integrated air feed-through
    Air / vaccum transfer hoseless control possible
  7. Loose part
    for tool side assembly
