Tool Changers

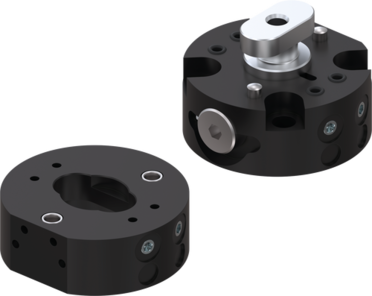

Series HWR2000

  • Change in seconds
    Reduce your start up costs and minimise downtimes by changing your tool in seconds
  • Integrated air transfer system
    For supplying pneumatic actuators. Additional media can be transmitted using optional energy elements.
  • Includes loss protection
    Undesired falling of work pieces is eliminated - this means the highest safety for man and machine
Technical Data
Connecting flange according EN ISO 9409-1TK 40
Pneumatic energy transfer4 [Quantity]
Flow per connector150 [l/min]
Electrical energy transferoptional
Self locking mechanism when lockingmechanical
Locking stroke4 [mm]
Repetition accuracy in Z0.01 [mm]
Repetition accuracy in X, Y0,02 [mm]
Nominal operating pressure6 [bar]
Operating temperature5 ... +80 [°C]
Moment of inertia0.33 [kgcm²]
Weight0.14 [kg]
Benefits in detail
  1. Fix part
    for robot side assembly
  2. Robot flange
    partial mounting circle in accordance with EN ISO 9409-1
  3. Eccentric locking bolt
    with spring supported snap in function
  4. Locking bolt
    adapted to the clamping sleeve
  5. Mounting for energy element
  6. Integrated air feed-through
    Air / vaccum transfer hoseless control possible
  7. Loose part
    for tool side assembly
