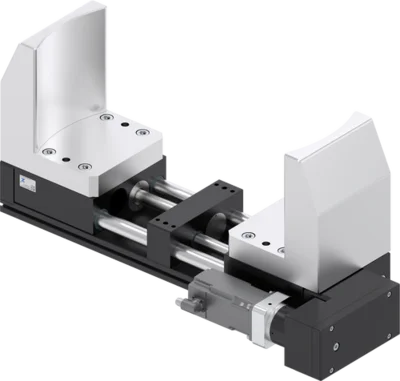

2-Jaw Parallel Grippers with Long Stroke
Series GEH8000
"The powerful"
- Extremely long and heavy gripper fingers possible
Despite their flat structural design, one of the features of the gripper fingers is that there are virtually no limitations when it comes to loading the machine with engine blocks or rims. - Decide for yourself!
With the standard motor or motors from another manufacturer – You decide what harmonizes the best with your system. - Dust-resistant and safe
Thanks to its IP54 rating, you can use the gripper even in harsh environmental conditions, and the redundant position hold feature in the event of a power failure ensures maximum process reliability.
Series features
5 million maintenance-free cycles (max.)
Integrated sensing
IP54
Positionable
Gripping force adjustable
unpowered; installation provided by customer
Drive with brake
Position retention via safety clamp
Profinet
- Trapezoidal threaded shaft
Service life (lubricated) - Roller slide
Sealed round guide designed for harsh environmental conditions and equipped with maintenance-free plain bearing bushings - Synchronization
Enclosed and dust-proof; asynchronous on request - Gripper jaw
individual gripper finger mounting - Gearbox
Durable force transmission via gears - Safety clamp
Permanent magnet brake for position locking Redundancy for the holding brake in version -63 - Emergency release
Using an Allen key - Drive
M1 with a Siemens servo motor and M0 without a motor - Energy supply
Single-cable solution for power and data transmission
