Tool changers WPR5000 series

MAXIMUM FLEXIBILITY AND EFFICIENCY

The WPR5000 series tool changer features a flat design, increased repeat accuracy and maximum tightening stroke. The compact design allows optimal use of space, while the high load capacity ensures that even heavy tools weighing up to 500 kg or more can be handled with ease.

Product Brochure

OUR EXPERTISE – YOUR ADVANTAGES

Safe tool changer
The tool changer ensures maximum safety and meets the requirements of Performance Level d, Control Category 3. This is achieved by a spring-loaded piston, self-locking mechanism, optional sensors and other accessories.

Locking kinematics
A new benchmark for tool changers is set with innovative locking kinematics with locking bolts and extreme rigidity. The extremely flat design guarantees minimal torque load on the robot and allows smaller and more cost-effective robots to be used.

Endless variety
The energy elements of the WER1500 and WER3000 series allow the standardized transmission of pneumatics, hydraulics, electrical signals, power and communication and much more.

	Technical data
Installation size	Connecting flange in accordance with EN ISO 9409-1	Pneumatic power transmission [quantity]	Electric power transmission	Suitable energy elements
WPR5040	TK 40	4	optional	4x WER1500
WPR5050	TK 50	4	optional	4x WER1500
WPR5063	TK 63	6	optional	6x WER1500
WPR5080	TK 80	6	optional	8x WER1500
WPR5100	TK 100	8	optional	6x WER3000
WPR5125	TK 125	10	optional	8x WER3000
WPR5160	TK 160	10	optional	8x WER3000

THE TECHNICAL FEATURES IN DETAIL

WPR5000 SERIES

ENERGY ELEMENTS

A nearly endless variety of optional energy elements for the transmission of pneumatics, electrical signals and load, communication and hydraulics. The right energy elements for any imaginable transmission scenario.

SPRING-LOADED LOCKING

Completely redeveloped locking kinematics result in maximum safety combined with absolute precision. All parts of the locking mechanism are made of hardened corrosion-resistant steel, both in the stationary and in the loose part.

PRE-CENTERING

Pre-centering using conical centering pins on the stationary part ensures smooth changing between the stationary and loose parts while providing extremely high torsional rigidity.

SAFETY

The WPR5000 series tool changers are extremely safe due to their spring-loaded locking mechanism, which holds the loose part securely to the stationary part even in the event of a pressure drop or an emergency stop.

LOCKING BOLTS

Locking parts made of hardened steel and locking bolts between the stationary and loose parts, which provide a high tightening stroke at maximum forces and torques, are setting a new standard for tool changers.

Integrated pneumatic feed-through

A tubeless connection is possible thanks to the integrated axial and radial pneumatic feed-throughs.

A nearly endless variety of optional energy elements for the transmission of pneumatics, electrical signals and load, communication and hydraulics. The right energy elements for any imaginable transmission scenario.

Completely redeveloped locking kinematics result in maximum safety combined with absolute precision. All parts of the locking mechanism are made of hardened corrosion-resistant steel, both in the stationary and in the loose part.

Pre-centering using conical centering pins on the stationary part ensures smooth changing between the stationary and loose parts while providing extremely high torsional rigidity.

The WPR5000 series tool changers are extremely safe due to their spring-loaded locking mechanism, which holds the loose part securely to the stationary part even in the event of a pressure drop or an emergency stop.

Locking parts made of hardened steel and locking bolts between the stationary and loose parts, which provide a high tightening stroke at maximum forces and torques, are setting a new standard for tool changers.

A tubeless connection is possible thanks to the integrated axial and radial pneumatic feed-throughs.

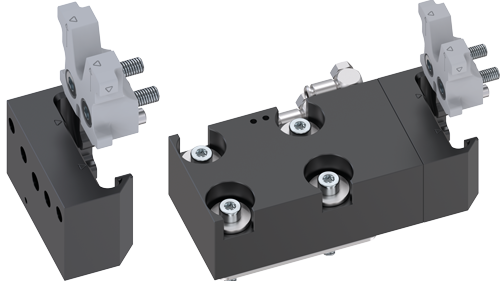

COMPREHENSIVE RANGE OF ACCESSORIES

The WPR5000 series tool changers offer a comprehensive range of accessories that significantly increase the efficiency and user-friendliness of your automated processes. These accessories allow seamless integration into existing robotic applications and ensure maximum reliability and operating convenience.

Piston position sensing

The piston position sensing using 2-point magnetic field sensors enables simple and reliable position monitoring of the locking mechanism. Unlike conventional systems where the sensors are mounted on top of the tool changer, the WPR5000 series features side integration. This maximizes the use of the installation space and minimizes the interference contour of the tool changer.

Programming tips

The programming tips provide an intuitive and simple way to make the teaching and programming process as easy and efficient as possible for the user. In addition, there are also markings on the storage station and on the suspension system for the loose part that significantly simplify the process of setting up the tool changer on the robot.

Always the right transmitter

Energy elements

ENDLESS VARIETY

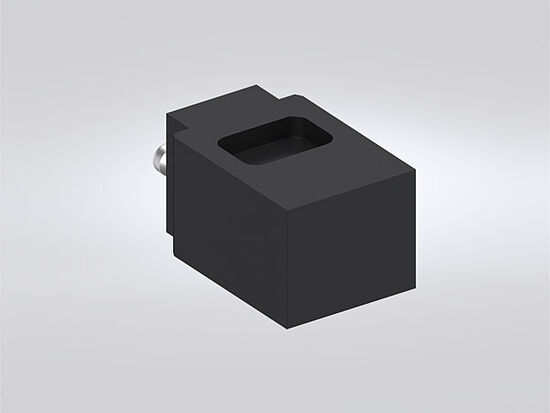

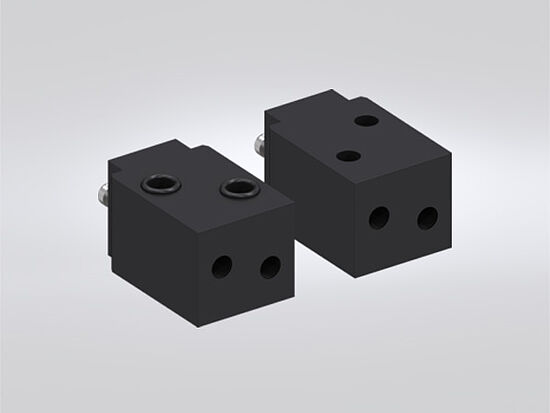

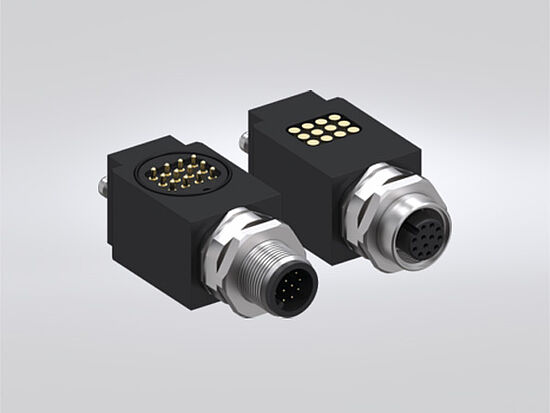

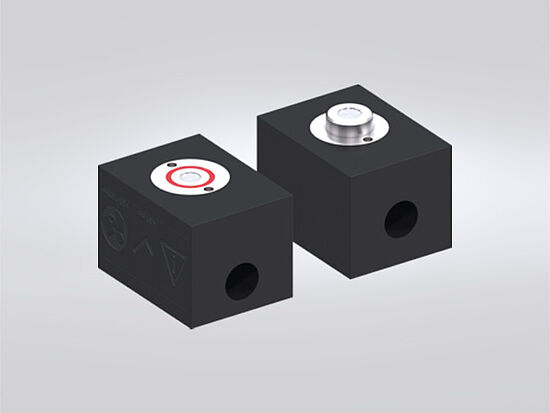

Energy elements are the most important accessories for tool changers and are essential for the transmission of a wide range of different media from the stationary part to the loose part. All tool changers offer integrated air transfer systems as standard. If larger or smaller cross-sections are needed, energy elements can be used. In addition, almost all media such as load current, signal current, hydraulics and communication can be transmitted using energy elements.

Energy Elements

Our expertise—your advantage

Standardized: Standardized interfaces and a modular design ensure flexible and cost-effective integration into all applications.
Integration: Components can be integrated seamlessly into existing systems and processes.
Innovative: The most modern technologies for efficient and future-proof solutions.
