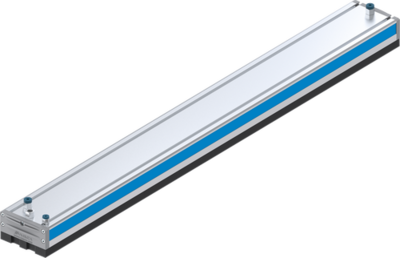

Vacuum gripping system
Series ZGB
- Dimensions: 130x220 mm–130x1200 mm
- High-performance
- Volume flow: 800 l/min - 2896 l/min
- Air consumption: 416 l/min - 832 l/min
- Vacuum level max.: -75 kPa
- Compatible with EPDM foam and Magic Cups
- Successor series to the ZGA with newly developed lightweight housing
Leakage property of the workpiece
Volume flow [l/min]
Weight [kg]
Installation size: ZGB130X220 | ||||
| Order-No. | Dimensions | Max. vacuum level | Volume flow | |
|---|---|---|---|---|
| ZGB130X220-24-FL2 | 130x220 [mm] | -75 [kPa] | 800 [l/min] | |
| ZGB130X220-24-FL2-N | 130x220 [mm] | -75 [kPa] | 800 [l/min] | |
| ZGB130X220-24-FL2-P | 130x220 [mm] | -75 [kPa] | 800 [l/min] | |
| ZGB130X220-24-FL3 | 130x220 [mm] | -75 [kPa] | 800 [l/min] | |
| ZGB130X220-24-FL3-N | 130x220 [mm] | -75 [kPa] | 800 [l/min] | |
| ZGB130X220-24-FL3-P | 130x220 [mm] | -75 [kPa] | 800 [l/min] | |
| ZGB130X220-24-FS2 | 130x220 [mm] | -75 [kPa] | 800 [l/min] | |
| ZGB130X220-24-FS2-N | 130x220 [mm] | -75 [kPa] | 800 [l/min] | |
| ZGB130X220-24-FS2-P | 130x220 [mm] | -75 [kPa] | 800 [l/min] | |
| ZGB130X220-24-FS3 | 130x220 [mm] | -75 [kPa] | 800 [l/min] | |
| ZGB130X220-24-FS3-N | 130x220 [mm] | -75 [kPa] | 800 [l/min] | |
| ZGB130X220-24-FS3-P | 130x220 [mm] | -75 [kPa] | 800 [l/min] | |
Installation size: ZGB130X300 | ||||
| Order-No. | Dimensions | Max. vacuum level | Volume flow | |
| ZGB130X300-34-FL2 | 130x300 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X300-34-FL2-N | 130x300 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X300-34-FL2-P | 130x300 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X300-34-FL3 | 130x300 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X300-34-FL3-N | 130x300 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X300-34-FL3-P | 130x300 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X300-34-FS2 | 130x300 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X300-34-FS2-N | 130x300 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X300-34-FS2-P | 130x300 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X300-34-FS3 | 130x300 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X300-34-FS3-N | 130x300 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X300-34-FS3-P | 130x300 [mm] | -75 [kPa] | 1448 [l/min] | |
Installation size: ZGB130X400 | ||||
| Order-No. | Dimensions | Max. vacuum level | Volume flow | |
| ZGB130X400-34-FL2 | 130x400 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X400-34-FL2-N | 130x400 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X400-34-FL2-P | 130x400 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X400-34-FL3 | 130x400 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X400-34-FL3-N | 130x400 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X400-34-FL3-P | 130x400 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X400-34-FS2 | 130x400 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X400-34-FS2-N | 130x400 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X400-34-FS2-P | 130x400 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X400-34-FS3 | 130x400 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X400-34-FS3-N | 130x400 [mm] | -75 [kPa] | 1448 [l/min] | |
| ZGB130X400-34-FS3-P | 130x400 [mm] | -75 [kPa] | 1448 [l/min] | |
Installation size: ZGB130X600 | ||||
| Order-No. | Dimensions | Max. vacuum level | Volume flow | |
| ZGB130X600-38-FL2 | 130x600 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X600-38-FL2-N | 130x600 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X600-38-FL2-P | 130x600 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X600-38-FL3 | 130x600 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X600-38-FL3-N | 130x600 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X600-38-FL3-P | 130x600 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X600-38-FS2 | 130x600 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X600-38-FS2-N | 130x600 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X600-38-FS2-P | 130x600 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X600-38-FS3 | 130x600 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X600-38-FS3-N | 130x600 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X600-38-FS3-P | 130x600 [mm] | -75 [kPa] | 2896 [l/min] | |
Installation size: ZGB130X800 | ||||
| Order-No. | Dimensions | Max. vacuum level | Volume flow | |
| ZGB130X800-38-FL2 | 130x800 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X800-38-FL2-N | 130x800 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X800-38-FL2-P | 130x800 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X800-38-FL3 | 130x800 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X800-38-FL3-N | 130x800 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X800-38-FL3-P | 130x800 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X800-38-FS2 | 130x800 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X800-38-FS2-N | 130x800 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X800-38-FS2-P | 130x800 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X800-38-FS3 | 130x800 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X800-38-FS3-N | 130x800 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X800-38-FS3-P | 130x800 [mm] | -75 [kPa] | 2896 [l/min] | |
Installation size: ZGB130X1000 | ||||
| Order-No. | Dimensions | Max. vacuum level | Volume flow | |
| ZGB130X1000-38-FL2 | 130x1000 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1000-38-FL2-N | 130x1000 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1000-38-FL2-P | 130x1000 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1000-38-FL3 | 130x1000 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1000-38-FL3-N | 130x1000 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1000-38-FL3-P | 130x1000 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1000-38-FS2 | 130x1000 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1000-38-FS2-N | 130x1000 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1000-38-FS2-P | 130x1000 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1000-38-FS3 | 130x1000 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1000-38-FS3-N | 130x1000 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1000-38-FS3-P | 130x1000 [mm] | -75 [kPa] | 2896 [l/min] | |
Installation size: ZGB130X1200 | ||||
| Order-No. | Dimensions | Max. vacuum level | Volume flow | |
| ZGB130X1200-38-FL2 | 130x1200 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1200-38-FL2-N | 130x1200 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1200-38-FL2-P | 130x1200 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1200-38-FL3 | 130x1200 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1200-38-FL3-N | 130x1200 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1200-38-FL3-P | 130x1200 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1200-38-FS2 | 130x1200 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1200-38-FS2-N | 130x1200 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1200-38-FS2-P | 130x1200 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1200-38-FS3 | 130x1200 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1200-38-FS3-N | 130x1200 [mm] | -75 [kPa] | 2896 [l/min] | |
| ZGB130X1200-38-FS3-P | 130x1200 [mm] | -75 [kPa] | 2896 [l/min] | |
