ZBX45-PU-18F-M

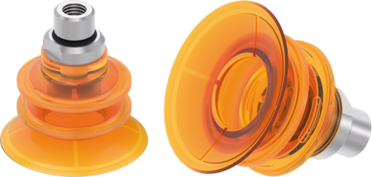

Bellows suction cup
Series ZBX

Diameter: 35 mm–55 mm
Optimum geometry
- For flat and convex surfaces
- Can be used universally
- Height compensation and damping function with 2.5 folds
- Profile structure on the underside of the suction cup for increased friction between the workpiece and vacuum suction cup
Application areas
- Packaging
- Consumer goods
- Intralogistics

Diameter	45 [mm]
Material	Polyurethan
Fixing thread	G1/8" internal
Filter type	Mesh filter
Lifting force vertical at -20 kPa	6.4 [kg]
Lifting force vertical at -60 kPa	8.8 [kg]
Lifting force vertical at -90 kPa	10.5 [kg]
Shore hardness	60
Suction cup shape	round
Color	Translucent orange
Operating temperature	0 ... +60 [°C]
Volume	13 [cm³]
Weight	0.018 [kg]
