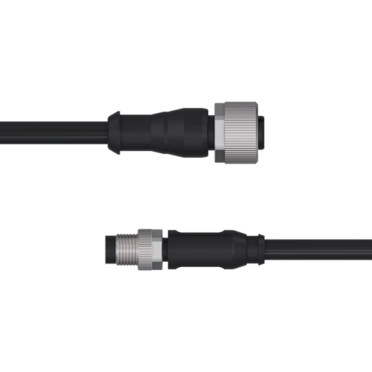

CSTE02025

Connecting cable
Series CSTE

Fixing thread	M8-M12
Connection type	Pin / socket
Nr. of wires x diameter	5x0,25 [mm²]
No. of contacts	5 / 5
Version	Straight/straight
Design	Connecting cable
Rated voltage	30 [V]
Bending radius for fixed routing, min.	6xØ
Bending radius when using a drag chain, min.	10xØ
Flame retardant	Yes
Weight	0.25 [kg]
Cable-Ø	5.6 [mm]
Cable length	0.15 [m]
Drag chain-adapted	Yes
Protection to IEC 60529	IP67
Current load (at 40°C)	3 [A]
Sealing material	FKM
Grip body material	PUR
Cable sheath material	PUR
Coupling nut material	Metal, CuZn, nickel-plated
Approvals	CE / UKCA / LABS / REACH / RoHS
Oil resistant	Yes
