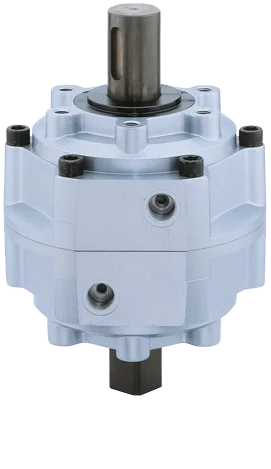

PRN800-90

Equipment/Options
 1.5 million maintenance-free cycles (max.) 1.5 million maintenance-free cycles (max.)
 IP54 IP54
 Inductive sensor Inductive sensor
 Positionability - 2 positions Positionability - 2 positions
 Rotation angle 90° Rotation angle 90°
              Technical Data

| Swivel angle | 90 [°] |
| Tolerance swivel angle | 0° / +3° [°] |
| Starting Angle | 45 [°] |
| Torque | 247 [Nm] |
| Swivel time | 0.45 [s] |
| Operating pressure | 2 ... 10 [bar] |
| Nominal operating pressure | 6 [bar] |
| Operating temperature | 5 ... +60 [°C] |
| Air volume per cycle | 1548 [cm³] |
| Approvals | LABS / REACH / RoHS |
| Protection to IEC 60529 | IP54 |
| Weight | 13 [kg] |
