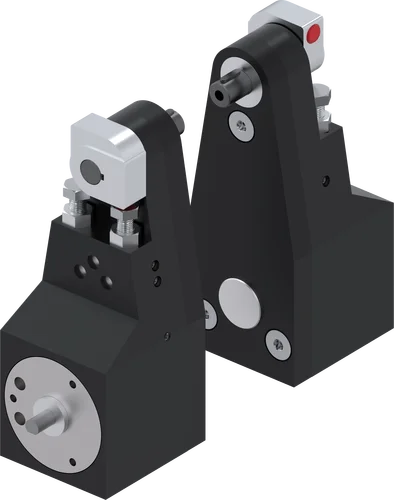

Swivel Jaws
Series SB
"The economical"
Series features
10 million maintenance-free cycles (max.)
Elastomer end position damping
IP54
Inductive sensor
Rotation angle 90°
Rotation angle 180°
Shaft extension
End positions adjustable +/- 3
- Drive shaft
as hexagonal or round shaft with feather key, depending on design quick and cost effective positioning of application-specific workpiece intakes - Two way bearing drive shaft
high forces and moments capacity - Stop
swivel angle of 90 and 180° stable, with Fibroflex stop surface - Position sensing
inquiry of end positions 0° and 90° (or180°) via inductive proximity switch integrated in housing, therefore no additional interference contour - End position
+/- 3° adjustable end position - Force transfer
stable toothed belt with steel reinforcement quiet, reliable, durable - Energy supply
possible from several sides - Drive
double-acting rotor cylinder
