KAG500B5

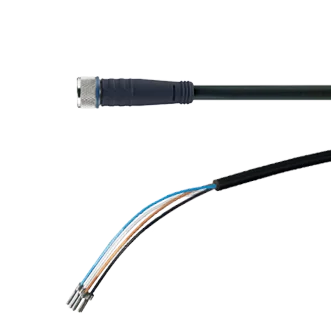

Plug-in connector straight with cable
Series KAG
- Plug-in Connector straight with Cable
- available in different sizes
- Halogen, silicone and PVC free
- Suitable for drag chains (10xØ)
Equipment/Options
UL approval
Technical Data
| Fixing thread | M8 |
| Connection type | Female |
| Connection type | Socket |
| Version | Straight |
| No. of contacts | 5 |
| Rated voltage | 30 [V] |
| Current load (at 40°C) | 3 [A] |
| Insulation resistance | ≥108Ω |
| Resistance | ≤5mΩ |
| Contact material | Metal, CuSn, gold-plated |
| Contact-carrier material | Plastic, TPU, BK |
| Grip body material | Plastic, TPU, BK |
| Coupling nut material | Metal, CuZn, nickel-plated |
| Sealing material | FPM/FKM |
| Cable sheath material | PUR |
| Cable length | 5 [m] |
| Cable-Ø | 4.7 [mm] |
| Nr. of wires x diameter | 5x0,25 [mm²] |
| Bend radius (fixed) | 5xØ |
| Bend radius (repeated) | 10xØ |
| Temperature range (repeated) | -30 ... +90 [°C] |
| Temperature range (fixed) | -50 ... +90 [°C] |
| Temperature range (drag chain) | -25 ... +60 [°C] |
| Maintenance free (max.) | 3 million cycles |
| Torsion | +/-180°/m, < 1 million cycles |
| Rated voltage cable | ≤300 [V] |
| Approvals | UL / CSA / LABS / REACH / RoHS |
| Protection to IEC 60529 | IP67 |
| Cable end assembly | open cable end |
| Flame retardant | Yes |
| Seawater resistant | Yes |
| Recyclable | Yes |
| LABS-compliant | Yes |
| RoHS compliant | Yes |
| Acid- and alkali resistant | Yes |
| Ozone resistant | Yes |
| UV resistant | Yes |
| Hydrolysis proof | Yes |
| Drag chain-adapted | Yes |
| Torsion resistant | Yes |
| Welding sparks resistent | Yes |
| Halogen-free | Yes |
| Silicone free | Yes |
| Oil resistant | Yes |
