XYR1063-B

Axis Compensation Modules
Series XYR1000

  • Adjustable balancing force and stroke
    Using adjusting screws, you can adjust the properties of the equalizer optimally to your application in the shortest amount of time
  • Flat design
    This structure reduces the moment load for your robot to a minimum and makes it possible to use smaller and more affordable sizes
  • Can be fixed in place centrally or de-centrally
    Depending on the requirement, you can clamp or centrally lock the equalizer position. An aid for optimal processes
Connecting flange according EN ISO 9409-1TK 63
Stroke X/Y level +/-4.5 [mm]
Retention force centred400 [N]
Retention force decentred125 [N]
Repetition accuracy +/-0.02 [mm]
Operating pressure1 ... 8 [bar]
Nominal operating pressure6 [bar]
Operating temperature5 ... +80 [°C]
Air volume per cycle centred16 [cm³]
Air volume per cycle decentred9 [cm³]
Moment of inertia32.8 [kgcm²]
CertificationsLABS / REACH / RoHS
B10d value20000000
Weight1.7 [kg]
Straight Fittings - Quick Connect Style
Sensors and energy supply
Details
Angled Fittings - Quick Connect Style
Sensors and energy supply
Details

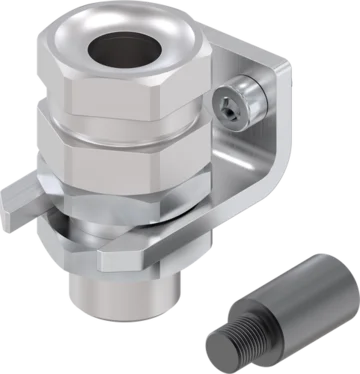

Alternate proximity bracket
Accessories
Details
Inductive proximity switch - Cable 5 m
Sensors and energy supply
Details
Inductive proximity switch – M8
Sensors and energy supply
Details
Piston position sensing
Accessories
Details
Use
  • In environments with highly flammable materials
Advantage
  • Safe process guaranteed
  • Certified
  • All products and classes can be certified
Details
Individualizations
Use
  • Pharmaceutical, medical, cosmetic and food industries
  • Packaging and production machines
Advantage
  • FDA-approved materials and coatings
  • No harmful contamination of the product
Details
  1. Piston position sensing
    • via magnetic field sensor
    • available as an accessory
  2. Robust, lightweight housing
    • Hard-coated aluminum alloy
    • partial mounting circle in accordance with EN ISO 9409-1
    • lowest overall height
  3. Compensation force
    • adjustable via adjustment screw
  4. Compensation stroke
    • infinitely variable (from size 1063 upwards)
  5. Locking piston
    • centrical via cone
  6. Eccentrical locking
    • via pneumatic piston with frictional contact
  7. Linear guide
    • for highest force and moments capacity
  8. Compensation plate
    • to balance position errors in XY- direction
