ZBU35-N-18F

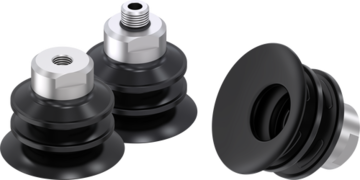

Bellows suction cup
Series ZBU

Diameter: 35 mm–55 mm
Optimum geometry
- For flat and convex surfaces
- Can be used universally
- Height compensation and damping function with 2.5 folds
Application areas
- Packaging
- Consumer goods
- Intralogistics

Diameter	35 [mm]
Material	NBR
Fixing thread	G1/8" internal
Lifting force vertical at -20 kPa	2.26 [kg]
Lifting force vertical at -60 kPa	4.28 [kg]
Lifting force vertical at -90 kPa	5.75 [kg]
Shore hardness	60
Suction cup shape	round
Color	Black
Operating temperature	-20 ... +110 [°C]
Volume	6.2 [cm³]
Weight	0.011 [kg]
