ZF75-WS-14F

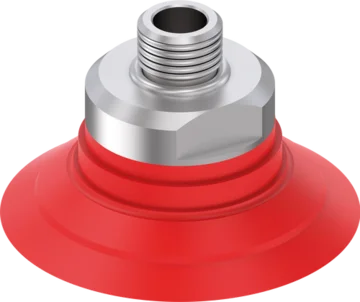

Flat suction cup
Series ZF

Diameter: 15 mm–300 mm
Optimum geometry
- For flat surfaces
- Knobbed profile on the underside of the suction cup for increased friction between the workpiece and vacuum suction cup
- Available in a wide range of diameters
Application areas
- Intralogistics
- Wood and composite materials
- Metal

Diameter	75 [mm]
Material	Silicone food-safe
Fixing thread	G1/4" internal
Lifting force parallel at -20 kPa	6.12 [kg]
Lifting force parallel at -60 kPa	11.22 [kg]
Lifting force parallel -90 kPa	14.28 [kg]
Lifting force vertical at -20 kPa	8.16 [kg]
Lifting force vertical at -60 kPa	20.4 [kg]
Lifting force vertical at -90 kPa	27.55 [kg]
Shore hardness	55
Suction cup shape	round
Color	Translucent white
Operating temperature	-70 ... +200 [°C]
Volume	20 [cm³]
Weight	0.103 [kg]
