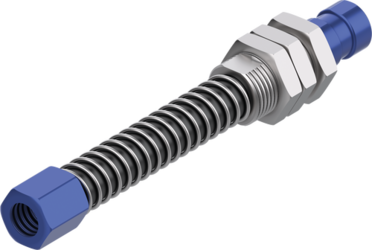

ZLC-14M-20-TI
Spring plunger
Series ZLC
- Flexible use for all requirements
- Variants with internal and external spring available
- Available with anti-rotation lock
Technical Data
| Connection type | Thread |
| Fixing thread | G1/4" external |
| Stroke | 20 [mm] |
| Fixing thread | M16X1 |
| Number of nuts | 2 |
| Width across flats Nuts | 20 [mm] |
| Vacuum connection | G1/8″ internal |
| Vacuum connection position | above |
| Spring position | inside |
| Approvals | LABS / REACH / RoHS |
| Weight | 0.045 [kg] |
