ZMP30312-B-AR3-DL-SN

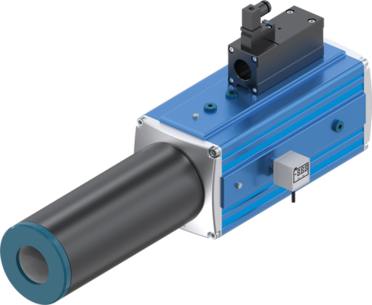

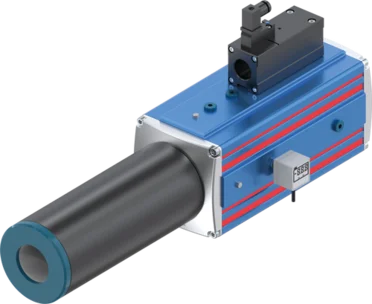

Vacuum ejector
Series ZMP
- Maximum performance for demanding applications
The ZMP series was developed for applications with very high vacuum flow requirements and offers exceptionally high performance. - Sturdy and durable
The durable aluminum housing is designed for reliable operation and protects the vacuum generator even in demanding applications. - Can be easily integrated
Multiple vacuum connections, as well as optional integrated features such as a silencer, air control, blow-off valve, and vacuum switch, allow for flexible integration into various vacuum systems. - Certifications: LABS / REACH / RoHS
Technical Data
| Max. vacuum level | -92 [kPa] |
| Volume flow | 4092 [l/min] |
| Digital vacuum switch | Yes |
| Air-saving function | No |
| Switching output | NPN |
| Weight | 4.5 [kg] |
| Vacuum generator type | Vacuum cartridge |
| Vacuum cartridge type | ZVC303 |
| Number of vacuum cartridges | 12 |
| Number of stages of the vacuum cartridge | 3 |
| Pneumatic connection | G1/2" inside |
| Number of compressed air connections | 1 |
| Air control valve | Yes |
| Air control valve version | NC |
| Blow-off control valve | Yes |
| Voltage | 24 [V] |
| Solenoid valve | Yes |
| Electr. connection solenoid valve | Cable connection to plug |
| Version with diode | Yes |
| Connection of the vacuum switch | Male connector, M8, 4-pin |
| Throttle check valve | No |
| Sealing material | NBR |
| Number of vacuum connections | 1 |
| Vacuum connection | G2″ female |
| Silencer | Yes |
| Silencer type | Free-flow silencer |
| Vacuum filter | No |
| Operating pressure max. | 7 [bar] |
| Max. noise level | 60 [dB] |
| Air consumption at 2.2 bar | 1176 [l/min] |
| Air consumption at 4 bar | 1608 [l/min] |
| Operating temperature | -20 ... +80 [°C] |
| Certifications | LABS / REACH / RoHS |
