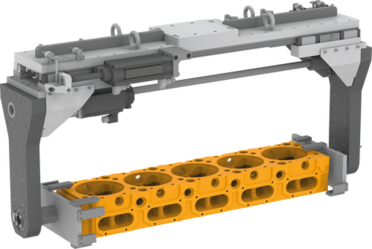

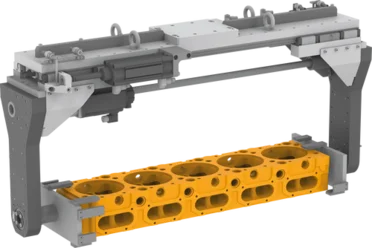

Handling system for cylinder heads
Conventional combustion engine
- Dominant force stroke for a uniform reference point
- Servo swivel axes
- Contour-related holding strips
- Dominant stroke and a low-backlash swivel axis
Equipment/Options
Pneumatic
Drive AC servo motor
External gripping
Position maintenance by means of clamping element
Technical Data
| Drive type | PNEU |
| Max. gripping force | 2000 [N] |
| Gripping concept | FORM |
| Gripping safety device | KLE |
| Max. stroke | 100 [mm] |
| IP class | IP40 |
| System weight | 120 [kg] |
| Max. workpiece weight | 150 [kg] |
| Max. workpiece temperature | 40 [°C] |
