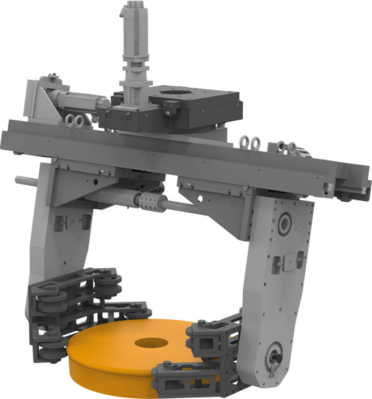

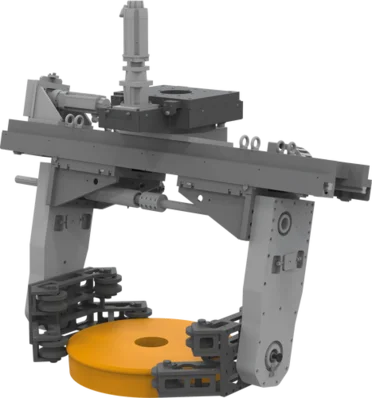

Handling system for railway wheels
Railway
- A-axis with 500 Nm drive
- C-axis
- Weight-optimized design
- Two-stage jaw set according to the respective part geometry
- Self-limiting threaded spindles in the gripper module
Equipment/Options
Self locking mechanism
Gripping force adjustable
Drive AC servo motor
External gripping
Gripper jaws are synchronized
Technical Data
| Drive type | electric |
| Gripping concept | FORM |
| Gripping safety device | Self locking mechanism |
| Max. stroke | 700 [mm] |
| System weight | 550 [kg] |
| Max. workpiece weight | 800 [kg] |
| Max. workpiece temperature | 40 [°C] |
