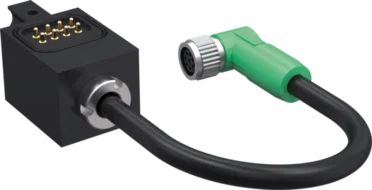

WER1000FSI08-10-B

Energy element
Series WER1000



  • Fluid and electrical energy transfer
  • Standardised and packaged
  • Short set up time for maintenance work
  • Custom-specifically modifiable
Technical Data
Compatible withFixed part
Connection typeSpring contacts
Supply voltage30 [V]
Nominal current1.5 [A]
No. of contacts8
FunctionSignal current with direct connection to UR
SeriesWER1000
Transmission modeelectrical
Connection typeRound plug
Connection typeSocket
Fixing threadM8
Joining force8 [N]
Protection to IEC 60529IP54
Weight0.04 [kg]
Suitable loose part
No. of contacts Connection type Fixing thread

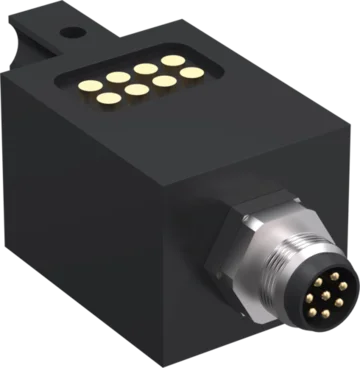

WER1000LSI08-10-B 8 Round plug M8

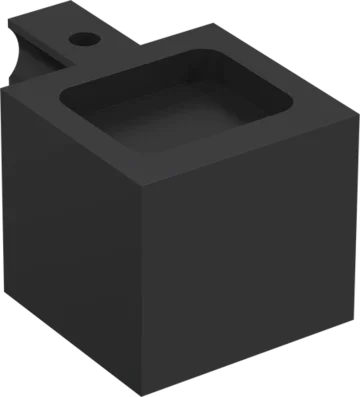

WER1000LLN00-00-B

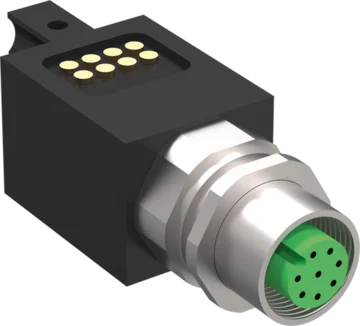

WER1000LSI08-00-B 8 Round plug M12
