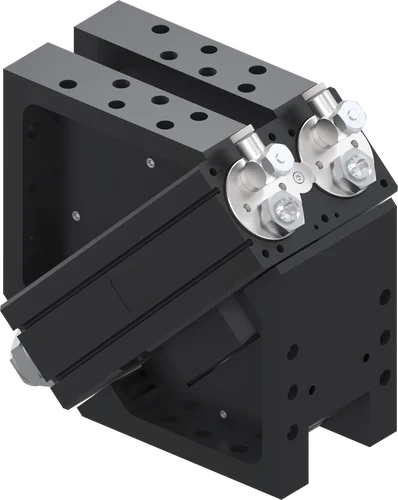

Angle Pivot Units
Series SW
"The superior"
- Up to 100% more performance than the benchmark
Superior end position damping lets you swivel more mass in the shortest amount of time, increasing your machine's component output - Includes two angle flanges
Reduce your design and manufacturing efforts with the angle pivot unit aligned on the machine loading system - More than 100% higher radial bearing load than the benchmark
The generously scaled bearings stand for robustness and long service life and provide the highest process reliability for your application
Series features
10 million maintenance-free cycles (max.)
Fluid feed-through
IP64
Magnetic field sensor
Inductive sensor
Rotation angle 180°
Flange
End positions adjustable +/- 3
Installation Size: SW50 | ||||
| Order-No. | Swivel angle | Torque | Repetition accuracy +/- | |
|---|---|---|---|---|
| SW50D4-C | 180 [°] | 1.5 [Nm] | 0.01 [°] | |
Installation Size: SW74 | ||||
| Order-No. | Swivel angle | Torque | Repetition accuracy +/- | |
| SW74D4-C | 180 [°] | 5.5 [Nm] | 0.01 [°] | |
Installation Size: SW100 | ||||
| Order-No. | Swivel angle | Torque | Repetition accuracy +/- | |
| SW100D4-C | 180 [°] | 15 [Nm] | 0.01 [°] | |
Installation Size: SW125 | ||||
| Order-No. | Swivel angle | Torque | Repetition accuracy +/- | |
| SW125D4-C | 180 [°] | 34 [Nm] | 0.01 [°] | |
Installation Size: SW155 | ||||
| Order-No. | Swivel angle | Torque | Repetition accuracy +/- | |
| SW155D4-C | 180 [°] | 58 [Nm] | 0.01 [°] | |
Installation Size: SW195 | ||||
| Order-No. | Swivel angle | Torque | Repetition accuracy +/- | |
| SW195D8-C | 180 [°] | 120 [Nm] | 0.01 [°] | |
- Air flow control valve
for speed regulation (included in the delivery) - Sensing slot
mounting and positioning of magnetic field sensors - Robust, lightweight housing
Hard-coated aluminum alloy - Force transfer
rack and pinion - Two way ball bearing hollow shaft
for feedthrough cables and hoses high forces and moments capacity - Up to 8 way integrated air feed-through
for hoseless air transfer hose package does not have to be pivoted - Mounting block
mounting for inductive proximity switch - Integrated and patented hydraulic shock absorbers
adjustable end position damping heating is prevented through installation in pneumatic pressure chamber
