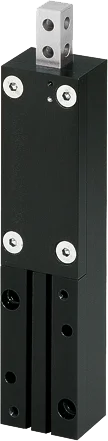

VEG23-B
Separators
Series VEG
- Hardened stainless steel guide
This guide is robust, reliable and durable: Exactly what you need for your application! - Decide for yourself!
Sensing via magnetic field sensors or inductive proximity switches: Unlike the benchmark, you are free to choose! - Failure-free continuous operation
Our uncompromising "Made in Germany" quality guarantees up to 10 million maintenance-free cycles
Equipment/Options
10 million maintenance-free cycles (max.)
IP40
Magnetic field sensor
Inductive sensor
Technical Data
| Stroke per tapped rod | 60 [mm] |
| Force in extend | 220 [N] |
| Force in retract | 170 [N] |
| Cycle count | 0.12 [s] |
| Repetition accuracy +/- | 0.05 [mm] |
| Operating pressure | 3 ... 8 [bar] |
| Nominal operating pressure | 6 [bar] |
| Operating temperature | 5 ... +80 [°C] |
| Air volume per cycle | 42 [cm³] |
| Certifications | LABS / REACH / RoHS |
| Protection to IEC 60529 | IP40 |
| B10d value | 10000000 |
| Weight | 0.82 [kg] |
Individualizations
 | Use
Advantage
| Details | ||
 | Use
Advantage
| Details |
Benefits in detail
- Tapped rod
- hardened steel
- Mounting
- individual seperator finger mounting
- Square guide
- rugged, high forces and moments capacity
- Mounting and positioning
- mounting possible from several sides for versatile positioning
- Drive
- double-acting pneumatic cylinder
- Energy supply
- Sensing
- groove for positioning of the magnetic field sensor
- Permanent magnet
- installed in piston area
