ZBL30-S-18M

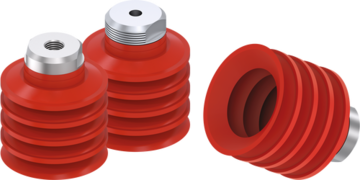

Bellows suction cup
Series ZBL

Optimum geometry
- For handling flexible workpieces
- Height compensation and damping function with up to 4.5 folds
Application areas
- Packaging
- Consumer goods
- Intralogistics

Diameter	30 [mm]
Material	Silicone
Shore hardness	55
Color	Red
Fixing thread	G1/8" external
Design	Bellows suction cup
Suction cup shape	round
Operating temperature	-70 ... +200 [°C]
Stroke	23 [mm]
Volume	13 [cm³]
Lifting force vertical at -20 kPa	8.83 [N]
Lifting force vertical at -60 kPa	21.58 [N]
Weight	0.011 [kg]
