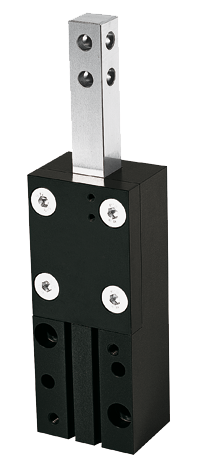

VEG22-B

Separators
Series VEG

  • Hardened stainless steel guide
    This guide is robust, reliable and durable: Exactly what you need for your application!
  • Decide for yourself!
    Sensing via magnetic field sensors or inductive proximity switches: Unlike the benchmark, you are free to choose!
  • Failure-free continuous operation
    Our uncompromising "Made in Germany" quality guarantees up to 10 million maintenance-free cycles
Equipment/Options
  • 10 million maintenance-free cycles (max.)
  • IP40
  • Magnetic field sensor
  • Inductive sensor
Technical Data
Stroke per tapped rod30 [mm]
Force in extend220 [N]
Force in retract170 [N]
Cycle count0.08 [s]
Repetition accuracy +/-0.05 [mm]
Operating pressure min.3 [bar]
Operating pressure max.8 [bar]
Operating temperature min.5 [°C]
Operating temperature max.+80 [°C]
Air volume per cycle20 [cm³]
Protection to IEC 60529IP40
Weight0.5 [kg]
Benefits in detail
  1. Tapped rod
    hardened steel
  2. Mounting
    individual seperator finger mounting
  3. Square guide
    rugged, high forces and moments capacity
  4. Mounting and positioning
    mounting possible from several sides for versatile positioning
  5. Drive
    double-acting pneumatic cylinder
  6. Energy supply
  7. Sensing
    groove for positioning of the magnetic field sensor
  8. Permanent magnet
    installed in piston area
