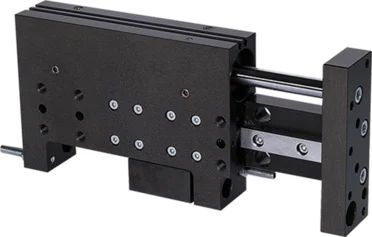

LSF25-50
Linear Rail Slides
Series LSF
- Precise profile guide
The linear guide with ball bearing circulation and scrapers provides high precision and rigidity - Dampened end position

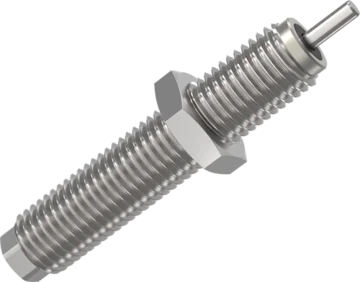

By using PowerStop shock absorbers, you can gently move up to the end positions, increasing the process reliability and durability of your application - Flat structure
Reduces the interference contours for your application
Equipment/Options
10 million maintenance-free cycles (max.)
Powerstop end position damping
IP40
IP54
Magnetic field sensor
Inductive sensor- Continuous piston rod
- 2 way guiding
- 3 way guiding
Technical Data
| Stroke | 50 [mm] |
| Pressure force max. | 265 [N] |
| Retraction force | 220 [N] |
| Piston diameter | 25 [mm] |
| Guide rail size | 12 [mm] |
| Nominal operating pressure | 6 [bar] |
| Operating temperature | 5 ... +80 [°C] |
| Air volume per cycle | 45 [cm³] |
| Approvals | LABS / REACH / RoHS |
| Protection to IEC 60529 | IP40 |
| Weight | 1.2 [kg] |

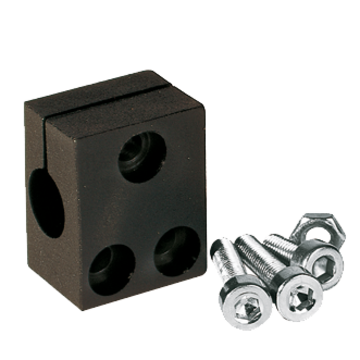

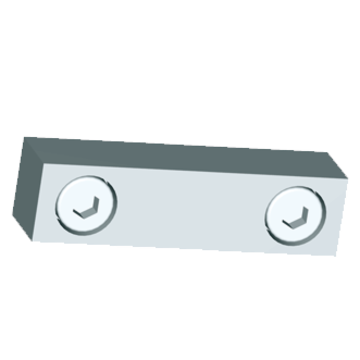

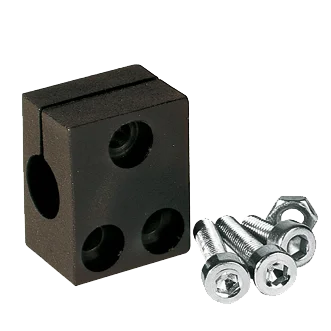

Accessory
Benefits in detail
- Patented, hydraulic shock absorber
adjustable end position damping included in scope of delivery - Stroke limiting screw
- Mounting and positioning
possible from several sides - Robust, lightweight and extremely flat structure housing
Hard-coated aluminum alloy - Mounting groove for magnetic field sensor
integrated, space saving position sensing - Drive
double-acting pneumatic cylinder - Linear guide with recirculating ball and wiper
dual linear guidance for high forces and moments capacity - Intake flange
simple application connection
