BAG137256

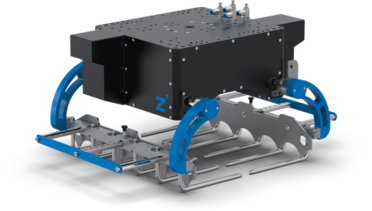

Handling system for bags
Series BAG

Synchronous, pneumatically operated jaw movement and force conservation keep the bag centered and ensure a long service life
Large drive cylinders for fast cycle times of up to 20 cycles per minute, depending on the robot and travel distance
Optional functions such as hold-down equipment, intermediate layer handling and pallet handling
Special forks for foodstuffs or for hazardous/chemical materials
Palletizing and depalletizing software for Yaskawa/ABB robots available

Equipment/Options

Drive type	PNEU
Workpiece weight max.	25 [kg]
System weight	45 [kg]
Gripping concept	Undergrip
Gripper type	Form fit
Gripping safety device	DRUCKSICHER
Max. stroke	90 ["]
Max. stroke	200 [mm]
IP class	IP54
Query type part available	capacitive
Connection	Robots
Arrangement of the workpieces	Stack
Number of workpieces in the gripper	1
Movement type of the gripper	Palletizing mode
Gripper jaws are synchronized	Yes
Nominal operating pressure	6 [bar]
Workpiece width max.	430 [mm]
Workpiece width min.	170 [mm]
Workpiece height max.	150 [mm]
Workpiece height min.	75 [mm]

Hold-down device Z135374
Intermediate layer gripper Z135343
Pallet lifter Z135371
Robot adapter Plate type Z165169
Software solution SWA000189
