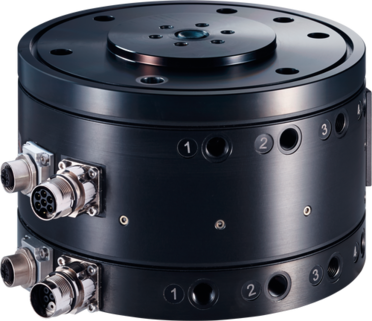

DVR1125PN

Rotary Distributors
Series DVR1000

  • Rotary distributor with Industrial Ethernet
    The integrated slip ring lets you transmit future-ready Industrial Ethernet to your machine for the first time with complete process reliability
  • 8x integrated air-feed-through
    Keep wear to a minimum and eliminate undefined interference contours from your hose package in order to use your machine‘s installation space more eff ectively
  • Double bearings
    The integrated roller bearings provide high stiffness and allows you to maximize the operational dynamics of your robot, improving your cycle times
add to request cart add to compare
Technical Data
Connecting flange according EN ISO 9409-1PCD 125
Recommended handling weight200 [kg]
Pneumatic energy transfer8 [Quantity]
Bus protocolIndustrial Ethernet
Data rate100 [Mbit/s]
Electrical energy transfer4 + PE
Max. current9 [A]
Max. voltage250 [V]
Maximum acceleration20 [m/s²]
Maximum speed100 [1/min.]
Maximum speed600 [°/s]
Radial run out +/-0.05 [mm]
Axial run out +/-0.05 [mm]
Constant torque4 [Nm]
Loose torque5 [Nm]
Operating pressure max.10 [bar]
Operating temperature5 ... +80 [°C]
Moment of inertia370 [kg/cm²]
Protection to IEC 60529IP64
Weight8.5 [kg]
