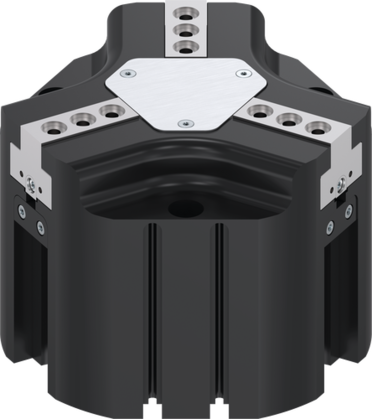

GD312S-C

3-Jaw Concentric Grippers
Series GD300

Equipment/Options

Universal jaw set aluminium UB312
Universal jaw set steel UB312ST
Pressure piece N / S ADS312N-S
Pressure piece NC / NO / SC / SO ADS312C-O
Straight Fittings - Quick Connect Style GV1-8X8
Pressure safety valve DSV1-8
Pressure safety valve with quick exhaust DSV1-8E
Inductive proximity switch, M8 NJ8-E2S
Magnetic field sensor angled, cable 0.3 m - M8 connector MFS01-S-KHC-P1-PNP
Magnetic field sensor straight, cable 0.3 m - M8 connector MFS02-S-KHC-P1-PNP
Straight position sensor, cable 0.3 m – M8 plug MFS02-S-KHC-IL
Plug-in connector Straight Cable 5m - Socket M8 (female) KAG500
Plug-in connector Angled Cable 5m - Socket M8 (female) KAW500
Plug-in connector customizable Straight - Connector M8 S8-G-3

Robust, lightweight housing
Hard-coated aluminum alloy
Energy supply
possible from several sides
Mounting and positioning
mounting possible from several sides for versatile positioning
Gripper jaw
individual gripper finger mounting
Wedge hook mechanism
synchronized the movement of the gripper jaws high force transfer
Integrated gripping force safety device
spring integrated into cylinder as energy storage
Position sensing
permanent magnet for direct monitoring of piston movement
Integrated, adjustable switch cam
for direct position sensing of the gripper jaw
Mounting block
mounting for inductive proximity switch (10)
