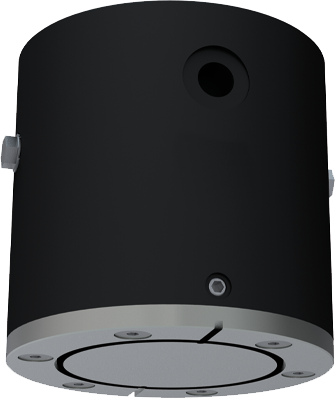

Magnetic gripper
Series HM1000

  • Secure hold during EMERGENCY STOP
    Magnets attached to springs ensure your workpiece remains secure, even during a drop in pressure
  • Contact plate that increases friction value
    The replaceable O-ring ensures the high dynamics in your application and protection of your workpiece
  • Residual holding force < 1N
    The demagnetised contact surface safeguards the process reliability of dropping off your workpiece
add to request cart add to compare
  • 5 million maintenance-free cycles (max.)
  • IP30
Technical Data
Adhesive force max.450 [N]
Operating pressure min.3 [bar]
Operating pressure max.8 [bar]
Operating temperature min.5 [°C]
Operating temperature max.+80 [°C]
Air volume per cycle250 [cm³]
Protection to IEC 60529IP30
Weight2.2 [kg]
Benefits in detail
  1. Mounting and positioning
    via centering sleeve and thread
  2. Spring
    for piston return secured holding even in drop pressure
  3. Permanent magnet
    requires no power supply high holding forces
  4. Transport safeguarding
  5. Robust, lightweight housing
    Hard-coated aluminum alloy
  6. single-acting pneumatic cylinders
    only one pneumatic line required Spring return
  7. Contact plate
    easy replaceable embedded O-ring to increase the friction coefficient
