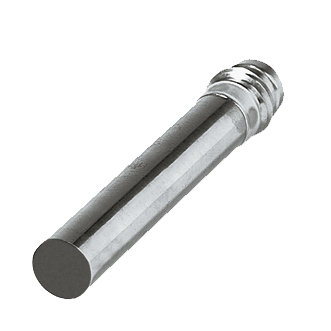

Inductive Proximity Switches
Series NJ

  • Contact-free, wear-free and short-circuit proof
  • Available starting at 3 mm Ø
Technical Data
Basic standardIEC 60947-5-2
Protection to IEC 60529IP67
Function displayYes
Protected against polarity reversalYes
Power indicatorNo
Connection typeConnector
Effective operating voltage24 [V DC]
Rated insulation voltage75 [V DC]
Load current capacity200 [mA]
Rated short circuit current100 [A]
Supply voltage min.10 [V DC]
Supply voltage max.30 [V DC]
Electrical versionDC, direct current
Load capacitance max.500 [μF]
No-load current damped max.9 [mA]
Max. no-load current undamped3 [mA]
Ripple max.15 [%]
Switching outputPNP
Switching frequency3000 [Hz]
Switching functionNormally open (NO)
Voltage drop2,5 [V]
Mounting length32,3 [mm]
Rated operating distance Sn1.50 [mm]
Installation typeflush
Housing MaterialStainless steel
Assured switching distance Sa1,20 [mm]
Effective operating distance Sr1.5 [mm]
Sensor-Ø6.5 [mm]
Connector typeM8x1
Depth46.0 [mm]
Ambient temperature range-25 ... +70 [°C]
Active surface materialPBT
