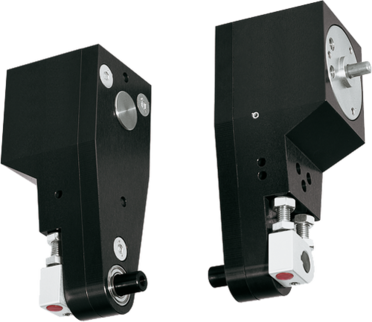

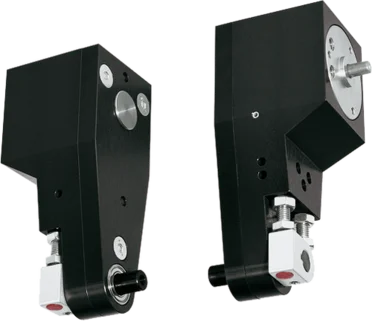

SB40-B

Swivel Jaws
Series SB

"The economical"

  • Concentration on the essentials
    The most cost-effective type of swivelling reduces your production costs
  • Proven technology
    We have more than 20 years of proven reliability, which ensures uninterrupted production for you
  • Flexible swivel angle
    90° or 180°; you decide which using the provided limit stops. This allows you to be flexible while only needing to maintain one product in your system
add to request cart add to compare
Equipment/Options
  • 10 million maintenance-free cycles (max.)
  • Elastomer end position damping
  • IP54
  • Inductive sensor
  • Positionability - 2 positions
  • Adjustable swivel angle
  • Rotation angle 90°
  • Rotation angle 180°
  • Shaft extension
  • End positions adjustable +/- 3
Technical Data
Swivel angle90 / 180 [°]
Torque per jaw0.3 [Nm]
Swivel angle regulable +/-3 [°]
Repetition accuracy +/-0.5 [°]
Operating pressure min.3 [bar]
Operating pressure max.7 [bar]
Nominal operating pressure6 [bar]
Operating temperature min.5 [°C]
Operating temperature max.+80 [°C]
Air volume per cycle4 [cm³]
Protection to IEC 60529IP54
Weight (pair)0.7 [kg]
FD385 [N]
FZ385 [N]
Benefits in detail

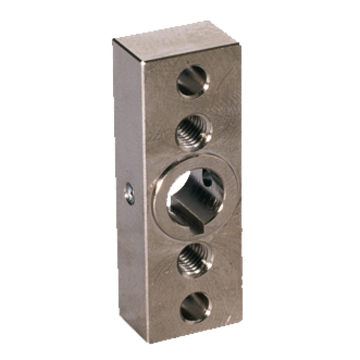

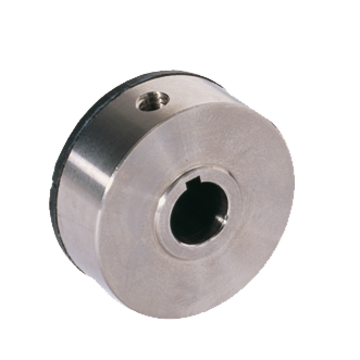

  1. Drive shaft
    as hexagonal or round shaft with feather key, depending on design quick and cost effective positioning of application-specific workpiece intakes
  2. Two way bearing drive shaft
    high forces and moments capacity
  3. Stop
    swivel angle of 90 and 180° stable, with Fibroflex stop surface
  4. Position sensing
    inquiry of end positions 0° and 90° (or180°) via inductive proximity switch integrated in housing, therefore no additional interference contour
  5. End position
    +/- 3° adjustable end position
  6. Force transfer
    stable toothed belt with steel reinforcement quiet, reliable, durable
  7. Energy supply
    possible from several sides
  8. Drive
    double-acting rotor cylinder
