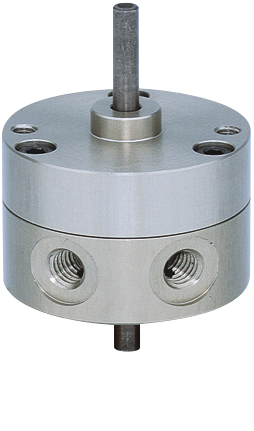

Rotary Cylinders
Series PRN

"The economical"

  • Concentration on the essentials
    The most economic type of swivelling reduces your production costs
  • Dampened end position
    Using the hydraulic brake allows you to move up to the end positions gently, increasing the process reliability and durability of your application
  • Forged drive shaft
    This shaft is not only robust, but can be individually adjusted
  • 1.5 million maintenance-free cycles (max.)
  • IP54
  • Inductive sensor
  • Positionability - 2 positions
  • Rotation angle 90°
Technical Data
Swivel angle90 [°]
Tolerance swivel angle0° / +4° [°]
Starting Angle90 [°]
Torque0.15 [Nm]
Swivel time0.1 [s]
Operating pressure min.2 [bar]
Operating pressure max.7 [bar]
Nominal operating pressure6 [bar]
Operating temperature min.-5 [°C]
Operating temperature max.+80 [°C]
Air volume per cycle2.8 [cm³]
Protection to IEC 60529IP54
Weight0.04 [kg]
