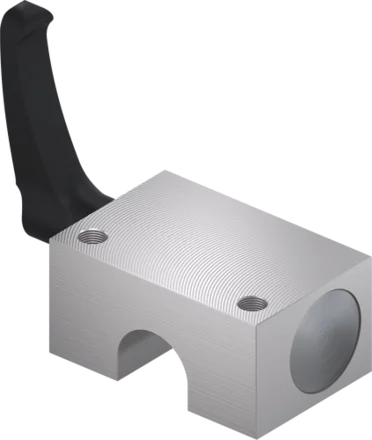

HKR4000A

Clamping element
Series HKR

Operation	manual
Holding force	2000 [N]
Tightening torque	15 [Nm]
Holding torque	40 [Nm]
Condition	N (bistable) remains in current position
B10d value	50000
Positioning accuracy +/-	0,02 [mm]
Operating temperature	-10 ... +70 [°C]
Certifications	LABS / REACH / RoHS
Weight	2.1 [kg]
Shaft Ø	40 [mm]
Function	clamping
Installation direction	from above
max. length clamping	68

Lever extension Individualizations	Lever extension Individualizations	Use Mechanical and plant engineering Packaging industry Food, Pharma, Life Science Advantage Extension of the clamping lever Predefined lengths of 25/50/100/150/200mm	Details
Actuation by cylinder screw Individualizations	Actuation by cylinder screw Individualizations	Use Mechanical and plant engineering Packaging industry Food, Pharma, Life Science Advantage Avoidance of interfering contours Prevents unintentional loosening	Details
Stainless steel version Individualizations	Stainless steel version Individualizations	Use Food industry Electronics industry Pharma, Life Science Advantage Stainless steel version Use of special greases	Details
Special diameter Individualizations	Special diameter Individualizations	Use For inch waves For special shafts from the usual standard sizes Advantage Use of existing shaft sizes	Details

Circular guide
- Compatible with circular and shaft guides
Clamping lever made from plastic
- Freely adjustable (release by lifting)
Clamping jaw
- The floating bearings
- guarantee symmetrical application of force
Housing
