LWR50F-00-04-A

One system for cobots and conventional robots
Standardized robot handling interface (mechanical gripping and vacuum)
Manual exchange with Easy-Click function (one-hand operation)
Automated changeover without external control in the deposit station
Large variety of end effectors
Optical Connect LED display
Control of grippers via IO-Link
Standard IO-Link M12 5-pin plug

Suitable for robot type	ISO TK 50
Control	IO-Link
Connecting flange according EN ISO 9409-1	TK 50
Handling weight max.	25 [kg]
Connecting cable	Plug, M12, 5-pole
Locking stroke	1 [mm]
Electrical energy transfer	integrated
Pneumatic energy transfer	integrated
Tightening force	50 [N]
Repetition accuracy in X, Y	0,05 [mm]
Repetition accuracy in Z	0,05 [mm]
Offset at coupling max. in X,Y	1 [mm]
Operating temperature	5 ... +60 [°C]
Service life in cycles	100000
Approvals	CE / UKCA / LABS / REACH / RoHS
Protection to IEC 60529	IP40
Weight	0.28 [kg]

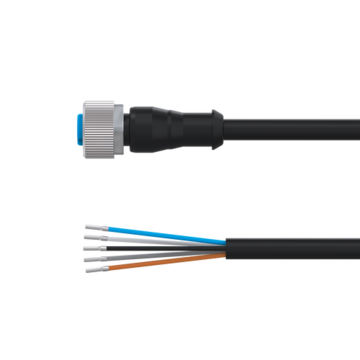

ZUB-REF CSTE01483 Accessories	ZUB-REF CSTE01483 Accessories	Details
Series KAG KAG500IL Sensors and energy supply	Series KAG KAG500IL Sensors and energy supply	Details
Independent of manufacturer SCM-C-00-00-A Smart Communication Module	Independent of manufacturer SCM-C-00-00-A Smart Communication Module	Details

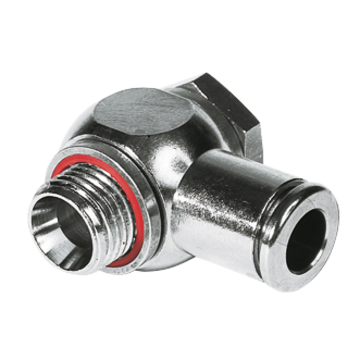

Series WV WVM7 Sensors and energy supply	Series WV WVM7 Sensors and energy supply	Details

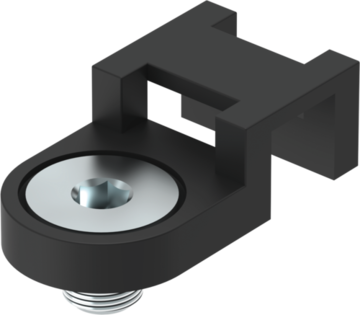

ZUB-REF ZUB123084 Accessories	ZUB-REF ZUB123084 Accessories	Details

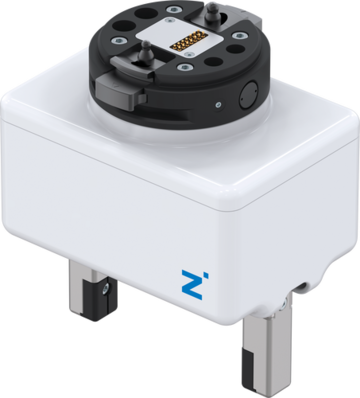

LWR - HRC-02 LWR50L-02-00001-A MATCH - Grippers	LWR - HRC-02 LWR50L-02-00001-A MATCH - Grippers	Details

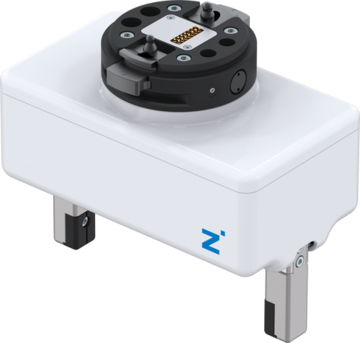

LWR - HRC-02 LWR50L-02-00002-A MATCH - Grippers	LWR - HRC-02 LWR50L-02-00002-A MATCH - Grippers	Details

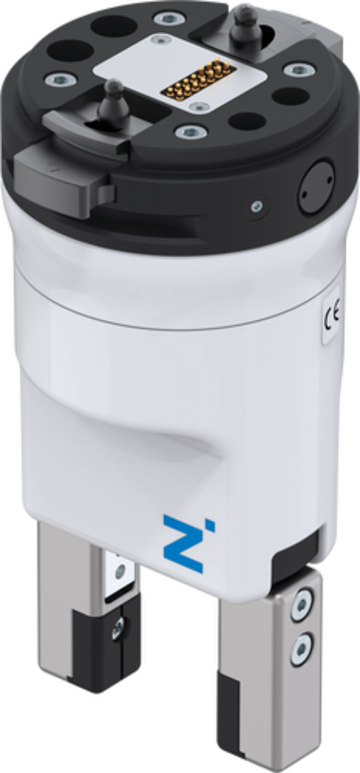

LWR - HRC-03 LWR50L-03-00001-A MATCH - Grippers	LWR - HRC-03 LWR50L-03-00001-A MATCH - Grippers	Details

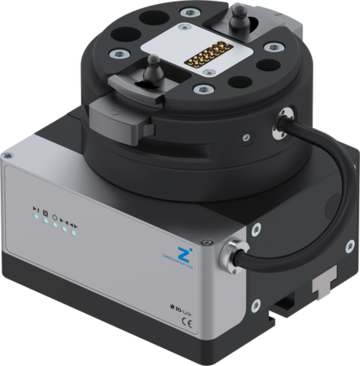

LWR - GEH6000IL LWR50L-21-00001-A MATCH - Grippers	LWR - GEH6000IL LWR50L-21-00001-A MATCH - Grippers	Details

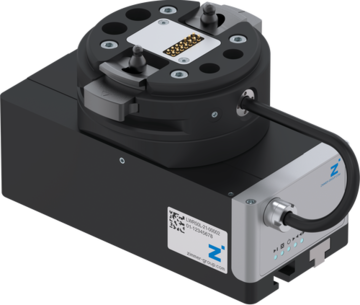

LWR - GEH6000IL LWR50L-21-00002-A MATCH - Grippers	LWR - GEH6000IL LWR50L-21-00002-A MATCH - Grippers	Details
LWR - GEH6000IL LWR50L-22-00001-A MATCH - Grippers	LWR - GEH6000IL LWR50L-22-00001-A MATCH - Grippers	Details

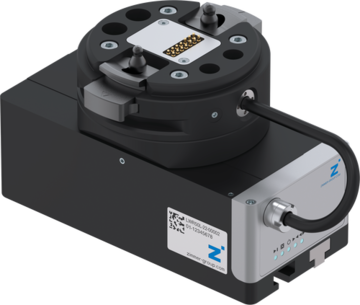

LWR - GEH6000IL LWR50L-22-00002-A MATCH - Grippers	LWR - GEH6000IL LWR50L-22-00002-A MATCH - Grippers	Details

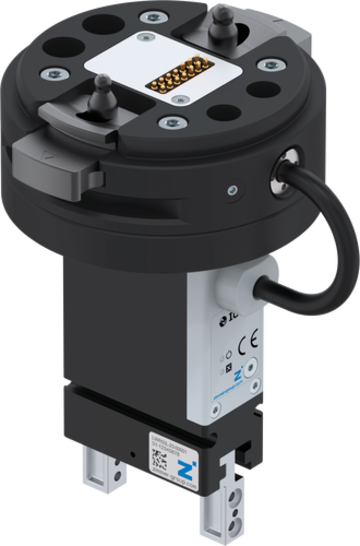

LWR - GEP2000 LWR50L-23-00001-A MATCH - Grippers	LWR - GEP2000 LWR50L-23-00001-A MATCH - Grippers	Details

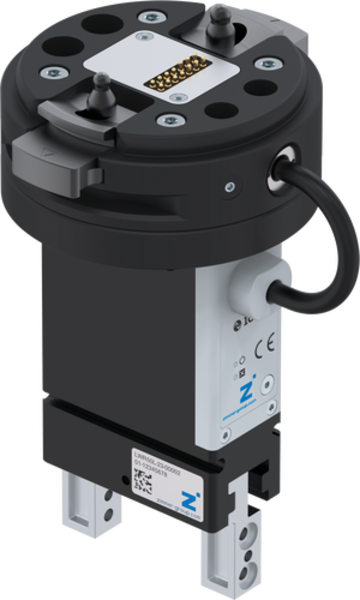

LWR - GEP2000 LWR50L-23-00002-A MATCH - Grippers	LWR - GEP2000 LWR50L-23-00002-A MATCH - Grippers	Details
LWR - GEP2000 LWR50L-23-00003-A MATCH - Grippers	LWR - GEP2000 LWR50L-23-00003-A MATCH - Grippers	Details

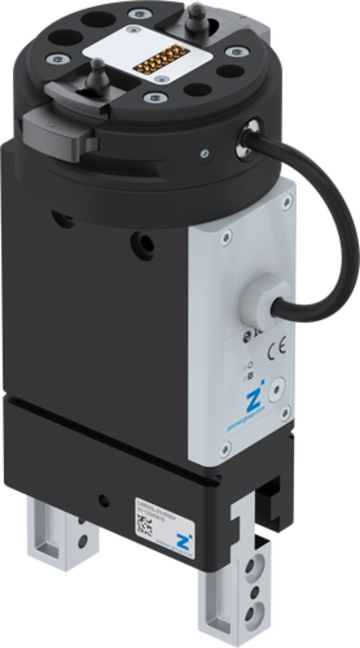

LWR - GEP2000 LWR50L-23-00004-A MATCH - Grippers	LWR - GEP2000 LWR50L-23-00004-A MATCH - Grippers	Details
LWR - GPP5000IL LWR50L-24-00001-A MATCH - Grippers	LWR - GPP5000IL LWR50L-24-00001-A MATCH - Grippers	Details

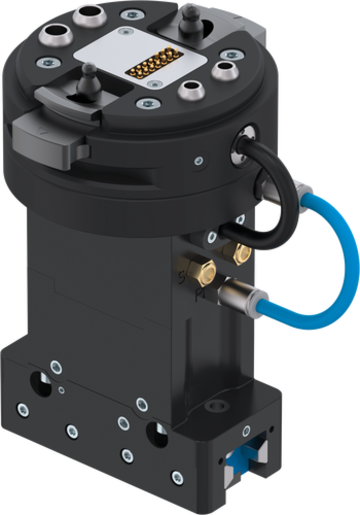

LWR - GPP5000IL LWR50L-24-00002-A MATCH - Grippers	LWR - GPP5000IL LWR50L-24-00002-A MATCH - Grippers	Details

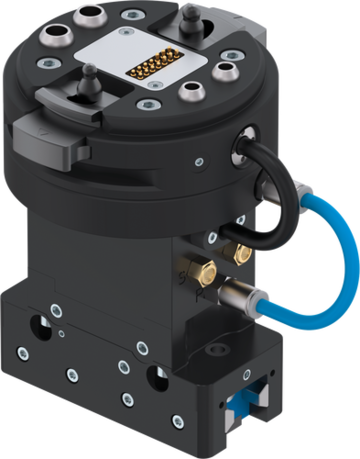

LWR - GPP5000IL LWR50L-24-00003-A MATCH - Grippers	LWR - GPP5000IL LWR50L-24-00003-A MATCH - Grippers	Details
LWR - GPP5000IL LWR50L-24-00004-A MATCH - Grippers	LWR - GPP5000IL LWR50L-24-00004-A MATCH - Grippers	Details

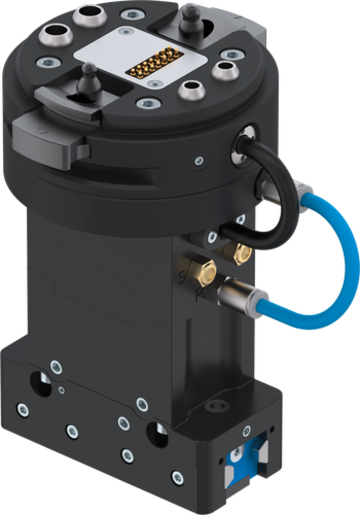

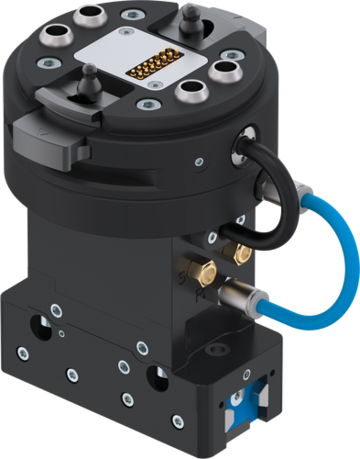

LWR - GPP5000IL LWR50L-24-00005-A MATCH - Grippers	LWR - GPP5000IL LWR50L-24-00005-A MATCH - Grippers	Details
LWR - GPP5000IL LWR50L-24-00006-A MATCH - Grippers	LWR - GPP5000IL LWR50L-24-00006-A MATCH - Grippers	Details

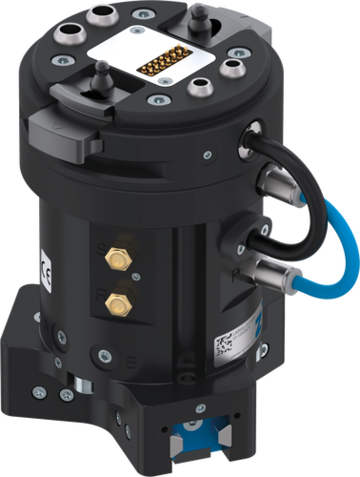

LWR - GPD5000IL LWR50L-25-00001-A MATCH - Grippers	LWR - GPD5000IL LWR50L-25-00001-A MATCH - Grippers	Details

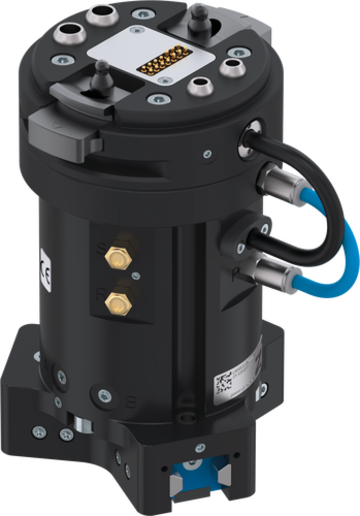

LWR - GPD5000IL LWR50L-25-00002-A MATCH - Grippers	LWR - GPD5000IL LWR50L-25-00002-A MATCH - Grippers	Details

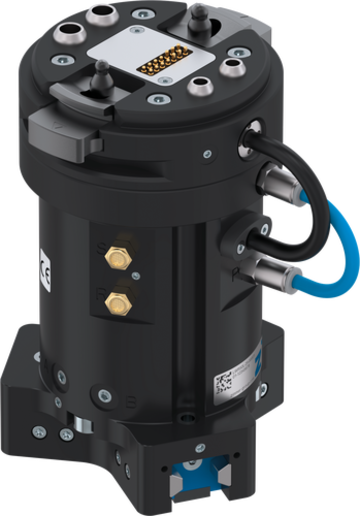

LWR - GPD5000IL LWR50L-25-00003-A MATCH - Grippers	LWR - GPD5000IL LWR50L-25-00003-A MATCH - Grippers	Details

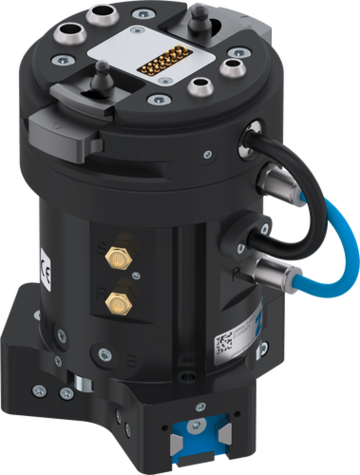

LWR - GPD5000IL LWR50L-25-00004-A MATCH - Grippers	LWR - GPD5000IL LWR50L-25-00004-A MATCH - Grippers	Details
LWR - GPD5000IL LWR50L-25-00005-A MATCH - Grippers	LWR - GPD5000IL LWR50L-25-00005-A MATCH - Grippers	Details

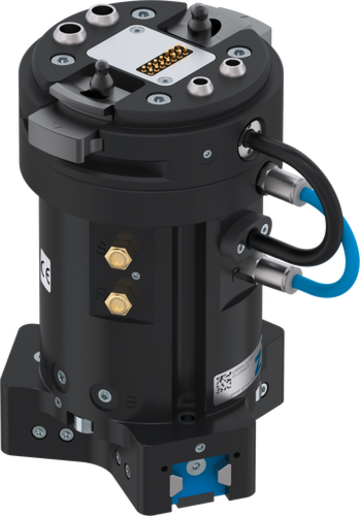

LWR - GPD5000IL LWR50L-25-00006-A MATCH - Grippers	LWR - GPD5000IL LWR50L-25-00006-A MATCH - Grippers	Details

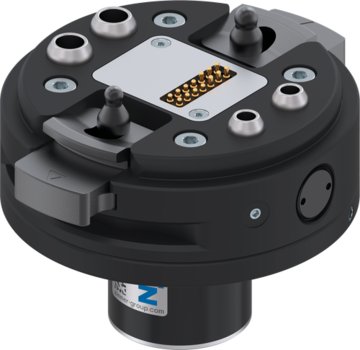

LWR - HM1000 LWR50L-26-00001-A MATCH - Grippers	LWR - HM1000 LWR50L-26-00001-A MATCH - Grippers	Details

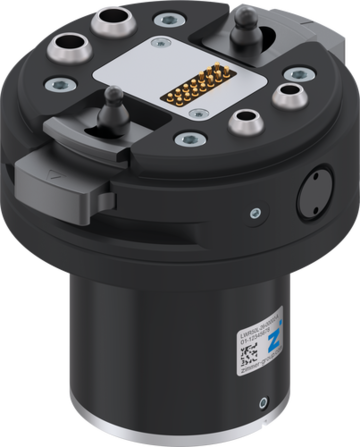

LWR - HM1000 LWR50L-26-00002-A MATCH - Grippers	LWR - HM1000 LWR50L-26-00002-A MATCH - Grippers	Details

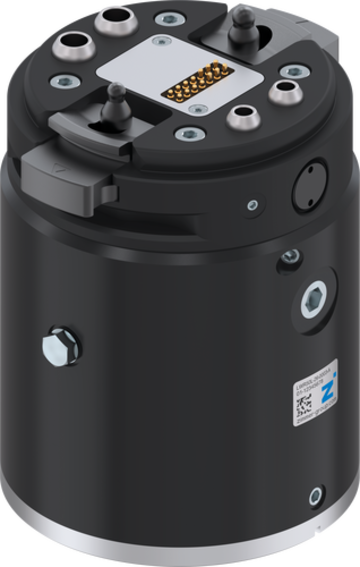

LWR - HM1000 LWR50L-26-00003-A MATCH - Grippers	LWR - HM1000 LWR50L-26-00003-A MATCH - Grippers	Details

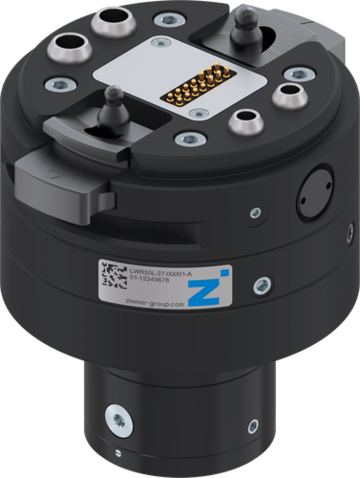

LWR - ST LWR50L-27-00001-A MATCH - Grippers	LWR - ST LWR50L-27-00001-A MATCH - Grippers	Details
