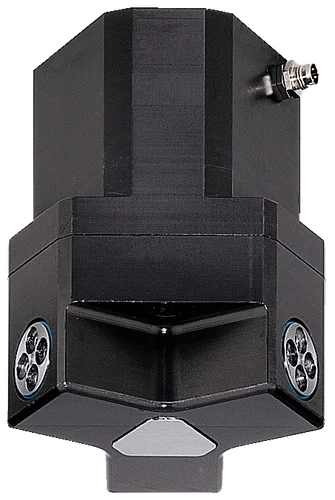

3-Jaw Concentric Grippers
Series GED1500

"The sealed"

  • IP64
    The sealed circular guide guarantees process reliability even under the harshest conditions
  • Integrated position sensing
    You can detect the gripper status safely via the motor current using your control system
  • The simplest activation
    The included control unit is controlled easily via plus and minus buttons, while you can optionally adjust the gripping force using the potentiometer
Installation Size: GED1502
Order-No.
GED1502
Installation Size: GED1506
  1. Removable centering sleeves
    quick and economical positioning of the gripper fingers
  2. Gripper jaw
    hardened steel individual gripper finger mounting
  3. Positively driven curve disc
    synchronized the movement of the gripper jaws high force transfer rapid stroke and force stroke (version with 6 mm stroke per jaw)
  4. Drive
    electric drive by 24 VDC step motor
  5. Guide
    sealed round guide for harsh environmental conditions
  6. Position sensing
    measured at the end of stroke via power increase on the motor
  7. Energy supply
    standardized interface M8 round plug connection signal control line (use only cable without diode)
  8. Robust, lightweight housing
    Hard-coated aluminum alloy
