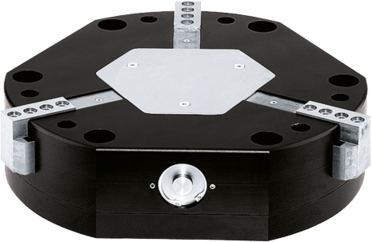

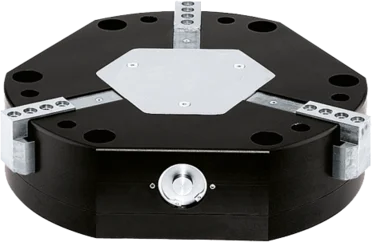

GD540

3-Jaw Concentric Grippers with Long Stroke
Series GD500

"The flat"

Reduced installation height due to horizontal drive
Reduces the interference contours for your application
Proven T slot guide
This established and proven guiding technology stands for the highest process reliability like no other
Failure-free continuous operation
Our uncompromising "Made in Germany" quality guarantees up to 10 million maintenance-free cycles

Equipment/Options

10 million maintenance-free cycles (max.)
IP40
Inductive sensor

Stroke per jaw	40 [mm]
Gripping force in closing	2480 [N]
Gripping force in opening	2480 [N]
Closing time	0.35 [s]
Opening time	0.35 [s]
Repetition accuracy +/-	0.05 [mm]
Operating pressure	3 ... 8 [bar]
Nominal operating pressure	6 [bar]
Operating temperature	+5 ... +80 [°C]
Air volume per cycle	440 [cm³]
Certifications	LABS / REACH / RoHS
Protection to IEC 60529	IP40
Weight	22 [kg]

Straight Fittings - Quick Connect Style GV1-4X8 Sensors and energy supply	Straight Fittings - Quick Connect Style GV1-4X8 Sensors and energy supply		Details
Angled Fittings - Quick Connect Style WV1-4X8 Sensors and energy supply	Angled Fittings - Quick Connect Style WV1-4X8 Sensors and energy supply		Details
Quick Exhaust Valve DEV08 Sensors and energy supply	Quick Exhaust Valve DEV08 Sensors and energy supply		Details
Pressure safety valve DSV1-8 Sensors and energy supply	Pressure safety valve DSV1-8 Sensors and energy supply		Details
Pressure safety valve with quick exhaust DSV1-8E Sensors and energy supply	Pressure safety valve with quick exhaust DSV1-8E Sensors and energy supply		Details
Inductive proximity switch - Cable 5 m NJ8-E2 Sensors and energy supply	Inductive proximity switch - Cable 5 m NJ8-E2 Sensors and energy supply		Details
Inductive proximity switch – M8 NJ8-E2S Sensors and energy supply	Inductive proximity switch – M8 NJ8-E2S Sensors and energy supply		Details
Plug-in connector Straight Cable 5m - female connector M8 KAG500 Sensors and energy supply	Plug-in connector Straight Cable 5m - female connector M8 KAG500 Sensors and energy supply		Details
Plug-in connector Angled Cable 5m - female connector M8 KAW500 Sensors and energy supply	Plug-in connector Angled Cable 5m - female connector M8 KAW500 Sensors and energy supply		Details
Plug-in connector customizable Straight - male connector M8 S8-G-3 Sensors and energy supply	Plug-in connector customizable Straight - male connector M8 S8-G-3 Sensors and energy supply		Details
Plug-in connector customizable Straight - male connector M12 S12-G-3 Sensors and energy supply	Plug-in connector customizable Straight - male connector M12 S12-G-3 Sensors and energy supply		Details

H1 greasing, food-safe Individualizations	H1 greasing, food-safe Individualizations	Use Pharmaceutical, medical, cosmetic and food industries Packaging and production machines Advantage FDA-approved materials and coatings No harmful contamination of the product		Details
Explosion protection according to Atex Individualizations	Explosion protection according to Atex Individualizations	Use In environments with highly flammable materials Advantage Safe process guaranteed Certified All products and classes can be certified		Details

Robust, lightweight housing
Hard-coated aluminum alloy
Removable centering sleeves
quick and economical positioning of the gripper fingers
Mounting and positioning
Gripper jaw
ground, hardened steel individual gripper finger mounting
Precise T-Slot guide
high forces and moments capacity
Cam
synchronized jaw movement
Drive
three double-acting pneumatic cylinders
Mounting block
mounting for inductive proximity switch
