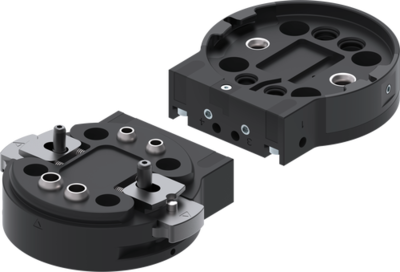

Tool Changers
Series FWR
- Automated tool change without external activation
In interaction with the storage station, the changer is actuated mechanically during retraction. As a result, no additional power supply is required for the change operation. - Manual tool change
The sizes FWR40 and FWR50 can be opened with just one hand. If this is not desired, you can lock the actuation manually. - Optional media transmission
Adapt the tool changer to your application. With the energy elements of the WER1000 and WER2000 series, you can transmit a variety of media with standard connections!
Installation Size: FWR40 | ||||
| Order-No. | Connecting flange according EN ISO 9409-1 | Tool weight max. | Pneumatic energy transfer | |
|---|---|---|---|---|
| FWR40F-00-A | TK 40 | 5 [kg] | 4 [Quantity] | |
| FWR40L-00-A | TK 40 | 5 [kg] | 4 [Quantity] | |
Installation Size: FWR50 | ||||
| Order-No. | Connecting flange according EN ISO 9409-1 | Tool weight max. | Pneumatic energy transfer | |
| FWR50F-00-A | TK 50 | 7 [kg] | 4 [Quantity] | |
| FWR50L-00-A | TK 50 | 7 [kg] | 4 [Quantity] | |
Installation Size: FWR63 | ||||
| Order-No. | Connecting flange according EN ISO 9409-1 | Tool weight max. | Pneumatic energy transfer | |
| FWR63F-00-A | TK 63 | 10 [kg] | 4 [Quantity] | |
| FWR63L-00-A | TK 63 | 10 [kg] | 4 [Quantity] | |
Installation Size: FWR80 | ||||
| Order-No. | Connecting flange according EN ISO 9409-1 | Tool weight max. | Pneumatic energy transfer | |
| FWR80F-00-A | TK 80 | 12 [kg] | 4 [Quantity] | |
| FWR80L-00-A | TK 80 | 12 [kg] | 4 [Quantity] | |
- Fix part
For robot side assembly - Connecting flange
partial mounting circle in accordance with EN ISO 9409-1 - Loose part presence sensing
via inductive proximity switch - Mounting for energy element
Direct connection, without adapter plates - Loose part
for tool side assembly - Locking
Manual actuation Automatic actuation via a storage station - Lock for manual actuation (optional)
Secure against inadvertent loosening - Integrated air feed-through
Air / vaccum transfer hoseless control possible
Exception: WER1000FPL04-12-B and WER1000LPL04-12-B cannot be used!
