3-Jaw Concentric Grippers
Series GD

"The flexible"

  • Largest stroke in small installation space
    You can cover numerous application variants with just one gripper type
  • Gripper jaws included in the delivery
    Reduces your design effort, manufacturing costs and setup time
  • Smooth stroke configuration
    Using the optionally available stroke limit, you can customise the stroke to your application, even stroke sensing is possible
Series features
  • 10 million maintenance-free cycles (max.)
  • IP40
  • Inductive sensor

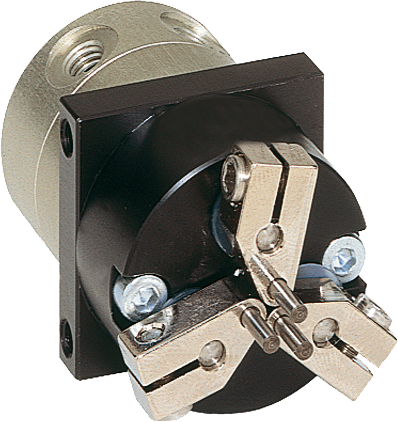

Installation Size: GD1
Order-No.Hub pro BackeGreifdurchmesser beim Schließen min.Greifdurchmesser beim Schließen max.
GD1-B130 [°]3 [mm]22 [mm]
Installation Size: GD10
Order-No.Hub pro BackeGreifdurchmesser beim Schließen min.Greifdurchmesser beim Schließen max.
GD10180 [°]5 [mm]45 [mm]
Installation Size: GD50
Order-No.Hub pro BackeGreifdurchmesser beim Schließen min.Greifdurchmesser beim Schließen max.
GD50120 [°]9 [mm]62 [mm]

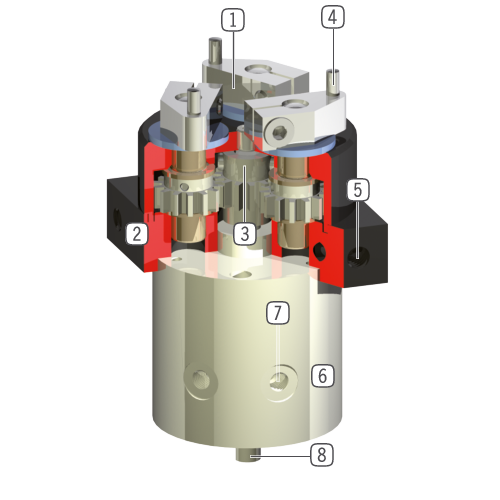

  1. Gripping movement on rotation
    for various workpiece diameters
  2. Robust, lightweight housing
    Hard-coated aluminum alloy
  3. Planetary transmission
    synchronized the movement of the gripper jaws
  4. Standard pins serve as gripper jaw
  5. Mounting and positioning
    mounting possible from several sides for versatile positioning
  6. Drive
    double-acting pneumatic cylinder
  7. Energy supply
    possible radial and axial
  8. Shaft projection
    for accessory assembly e.g. sensors
